Parking, License Plate And Tail Lamps: Schematic

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

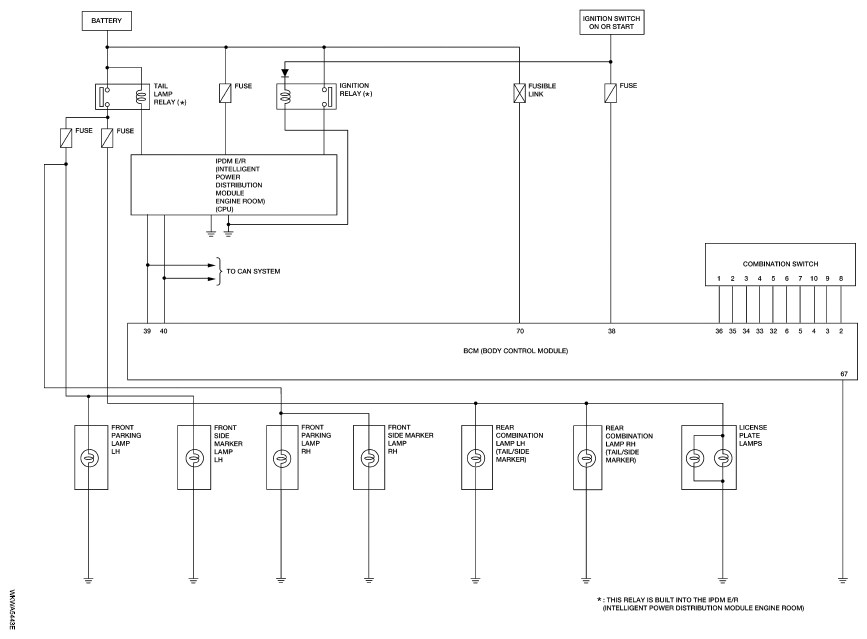

Fig 1: Identifying Parking, License Plate And Tail Lamps Schematic
G04913847
