Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

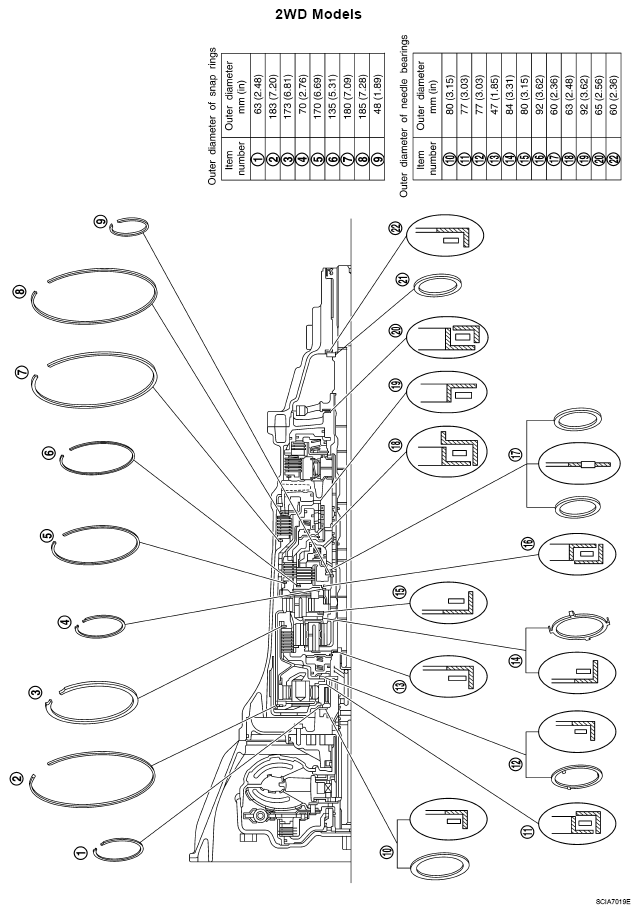

Fig 1: Identifying Adjusting Shims, Needle Bearings, Thrust Washers And Snap Rings Location (2WD Models)

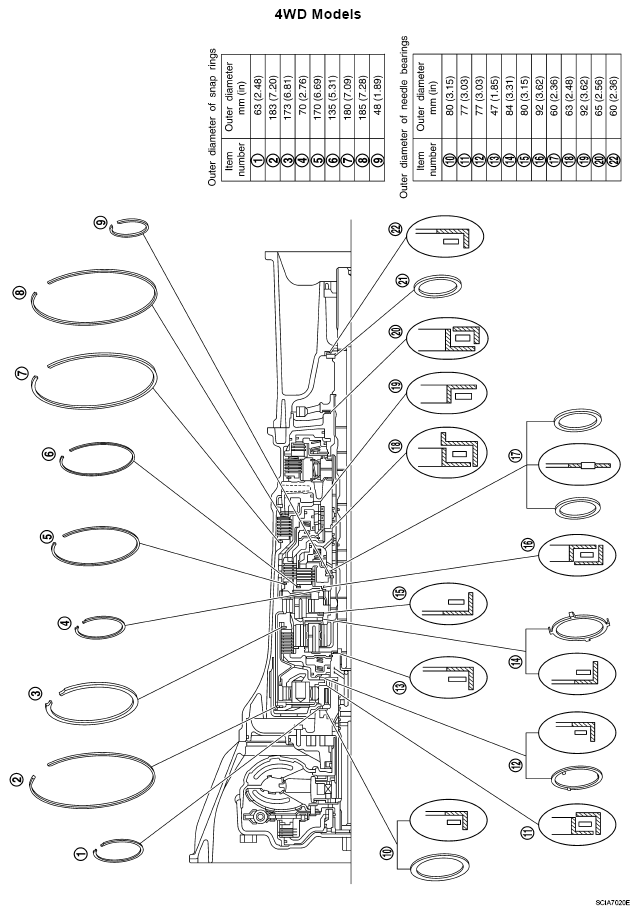

Fig 2: Identifying Adjusting Shims, Needle Bearings, Thrust Washers And Snap Rings Location (4WD Models)
