Front Door RH Harness
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

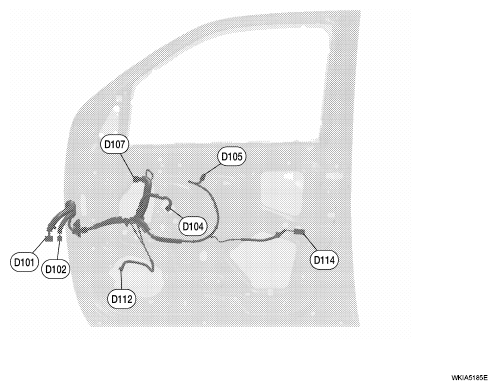

FRONT DOOR RH HARNESS DESCRIPTION
| D101 | W/12 | : To M75 | D107 | B/10 | : Door mirror RH (with heated mirrors) |
| D102 | W/16 | : To M74 | D112 | W/2 | : Front door speaker RH |
| D104 | B/6 | : Front power window motor RH | D114 | W/2 | : Front door lock actuator RH |
| D105 | W/12 | : Power window and door lock/unlock switch RH | |||
| D107 | B/3 | : Door mirror RH (without heated mirrors) |
