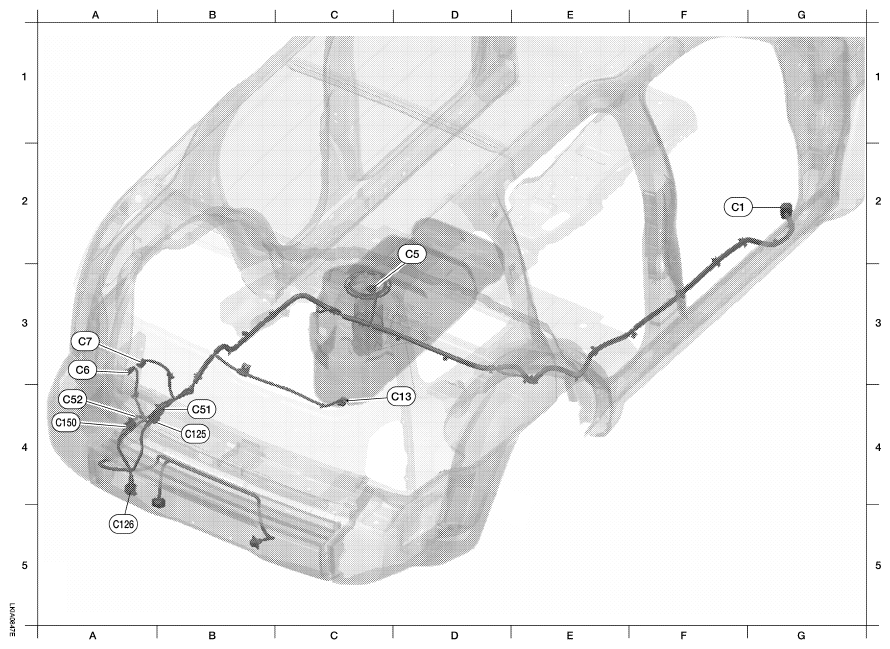

CHASSIS HARNESS DESCRIPTION
| F2 | C1 | SMJ | : To E41 | ||||
| D2 | C5 | GR/5 | : Fuel level sensor unit and fuel pump | ||||
| A3 | C6 | B/2 | : EVAP canister vent control valve | ||||
| A3 | C7 | GR/3 | : EVAP control system pressure sensor | ||||
| C3 | C13 | GR/4 | : Rear wheel sensor assembly | ||||
| B4 | C51 | GR/6 | : To C125 | ||||
| A4 | C52 | B/2 | : To C150 | ||||
| Trailer sub-harness | |||||||
| B4 | C125 | GR/6 | : To C51 | ||||
| A5 | C126 | B/7 | : Trailer (7-pin) | ||||
| A5 | C126 | B/4 | : Trailer (4-pin) | ||||
| A4 | C150 | B/2 | : To C52 | ||||
