Body Harness
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

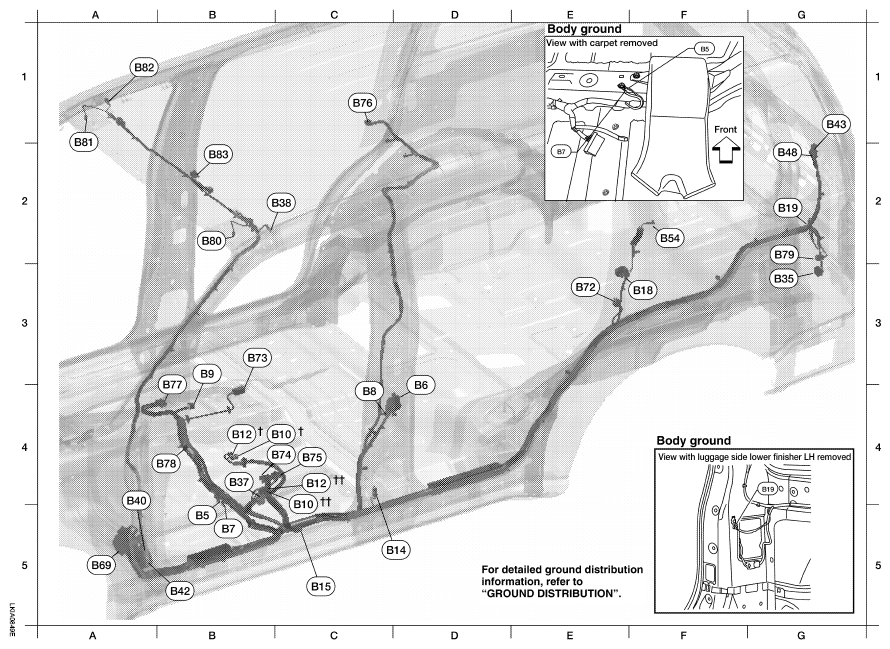

BODY HARNESS DESCRIPTION
| B5 | B5 | - | : LH side air bag satellite sensor (shield wire) | ||||
| D4 | B6 | W/12 | : To D201 | ||||
| B5 | B7 | - | : Body ground | ||||
| C4 | B8 | W/3 | : Front door switch LH | ||||
| B3 | B9 | Y/12 | : Air bag diagnosis sensor unit | ||||
| C4 | B10 | Y/2 | : Front LH side air bag module | ||||
| B4 | B12 | W/3 | : Seat belt buckle switch LH | ||||
| D5 | B14 | Y/2 | : Front LH seat belt pre-tensioner | ||||
| C5 | B15 | Y/2 | : LH side air bag (satellite) sensor | ||||
| F3 | B18 | W/3 | : Rear door switch LH | ||||
| G2 | B19 | - | : Body ground | ||||
| G3 | B35 | W/6 | : Rear combination lamp LH | ||||
| B4 | B37 | W/16 | : To P1 | ||||
| B2 | B38 | Y/2 | : LH side front curtain air bag module | ||||
| A4 | B40 | W/8 | : To E34 | ||||
| B5 | B42 | W/2 | : To E36 | ||||
| G1 | B43 | W/8 | : To D401 | ||||
| G2 | B48 | W/6 | : To D402 | ||||
| F2 | B54 | Y/2 | : LH side rear curtain air bag module | ||||
| A5 | B69 | SMJ | : To M40 | ||||
| E3 | B72 | W/8 | : Subwoofer (with BOSE audio system) | ||||
| B3 | B73 | B/6 | : Yaw rate/side/decel G sensor | ||||
| C4 | B74 | GR/8 | : BOSE speaker amp. | ||||
| C4 | B75 | B/24 | : BOSE speaker amp. | ||||
| C1 | B76 | W/16 | : Video monitor | ||||
| B4 | B77 | W/16 | : Video monitor | ||||
| B4 | B78 | Y/2 | : To B157 | ||||
| G2 | B79 | W/4 | : Fuel lid door lock actuator | ||||
| B2 | B80 | W/2 | : Vanity lamp LH | ||||
| A1 | B81 | W/2 | : Vanity lamp RH | ||||
| A1 | B82 | Y/2 | : RH side front curtain air bag module | ||||
| B2 | B83 | B/10 | : Sunroof motor assembly |
