Wiring Diagram -A/C,A-

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS -- PATHFINDER .

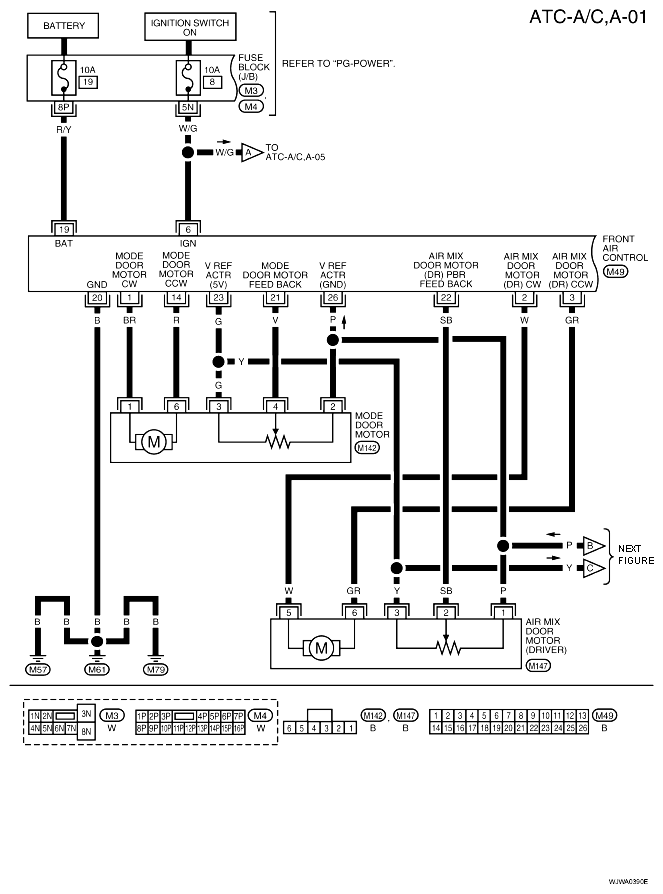

Fig 1: Identifying Wiring Diagram - ATC-AC,A-01

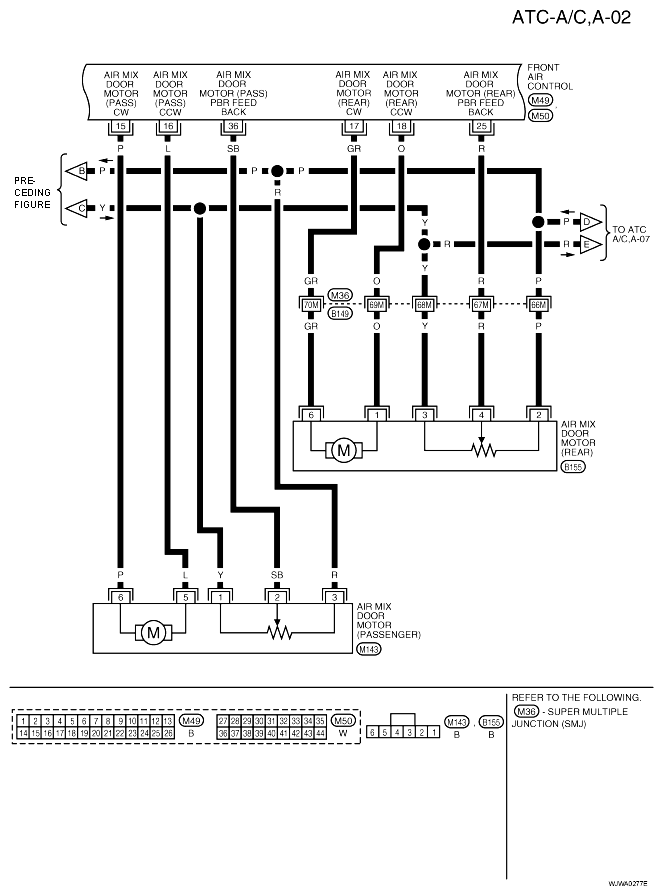

Fig 2: Identifying Wiring Diagram - ATC-AC,A-02

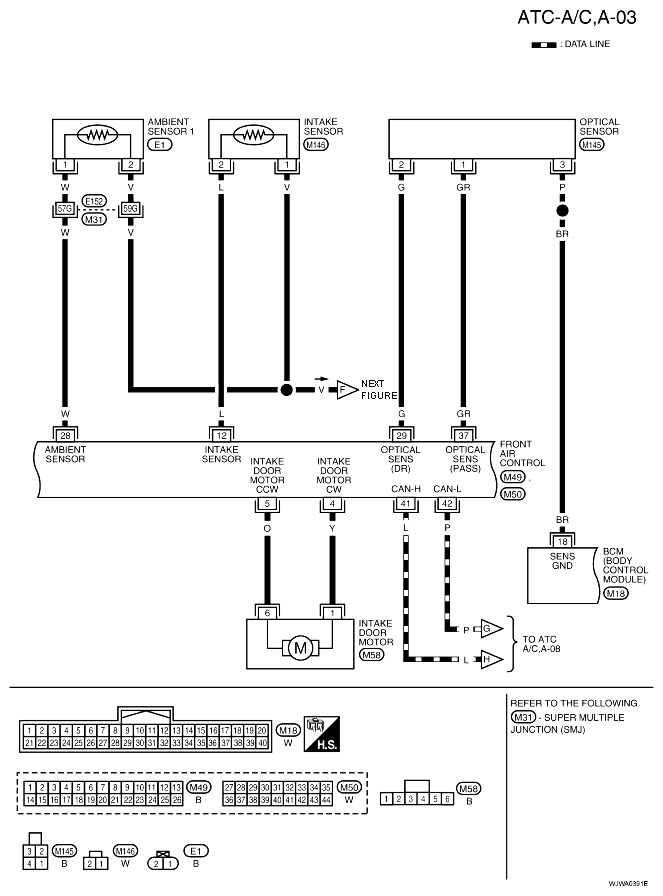

Fig 3: Identifying Wiring Diagram - ATC-AC,A-03

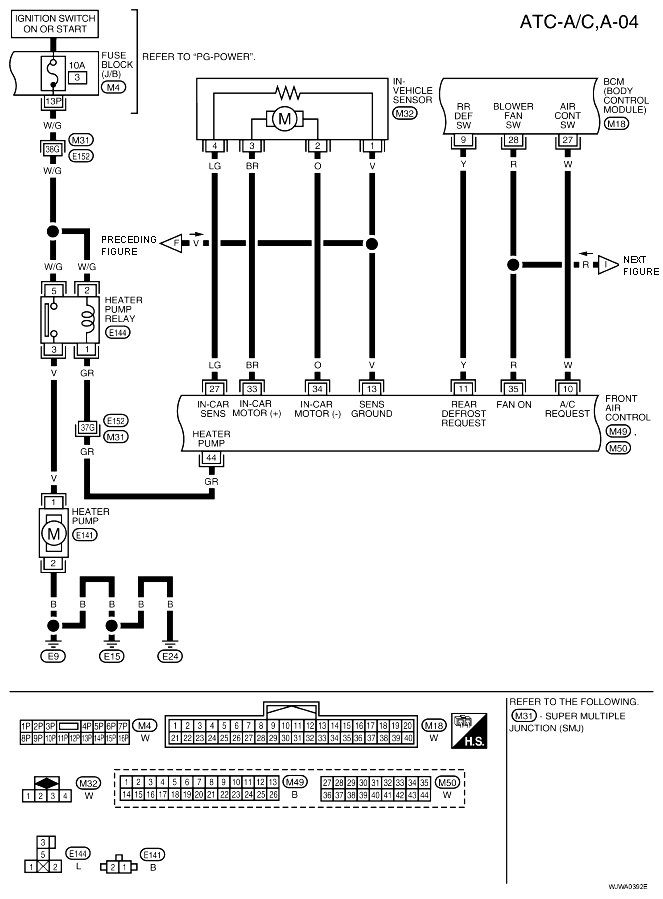

Fig 4: Identifying Wiring Diagram - ATC-AC,A-04

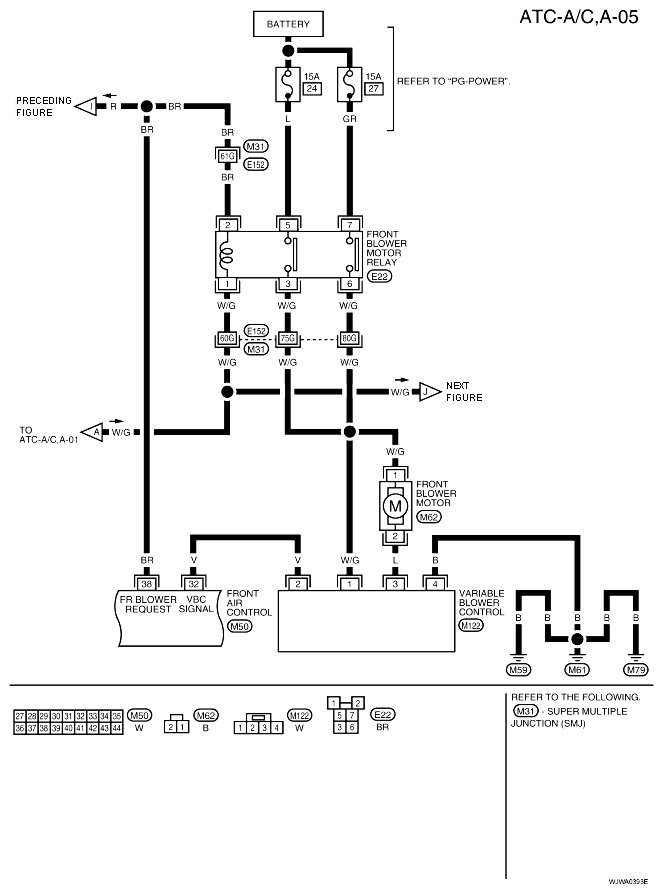

Fig 5: Identifying Wiring Diagram - ATC-AC,A-05

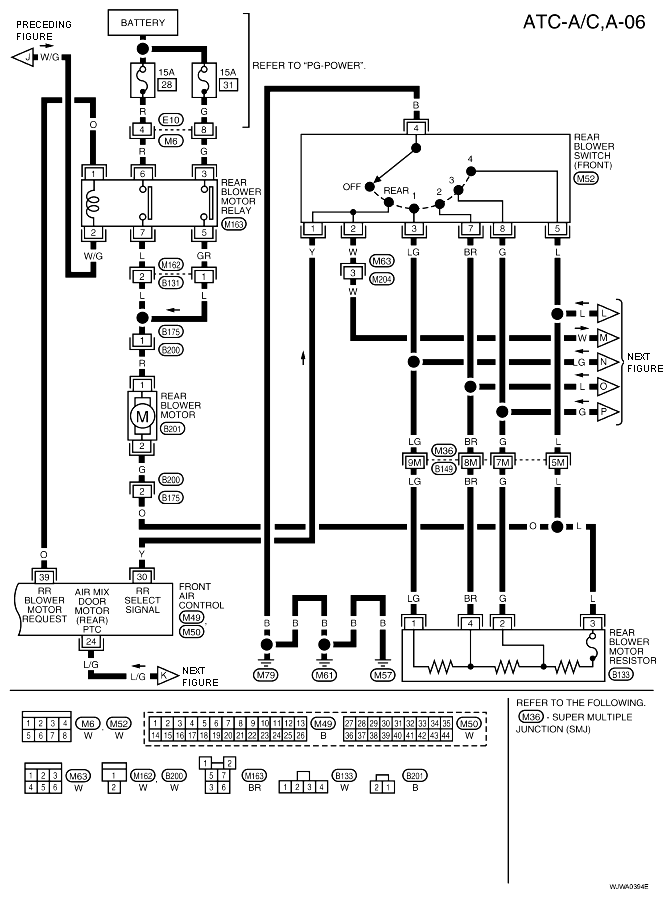

Fig 6: Identifying Wiring Diagram - ATC-AC,A-06

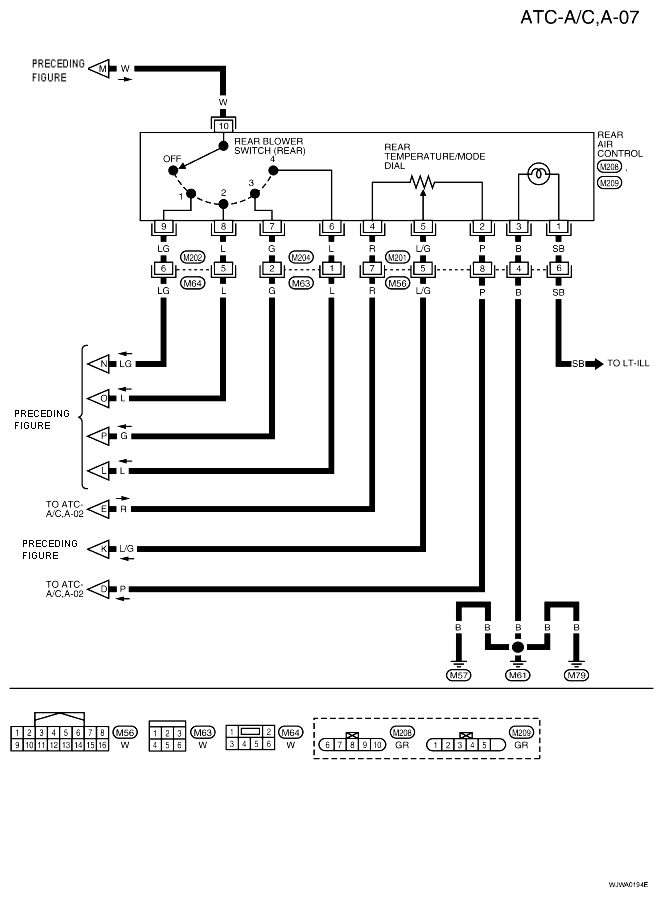

Fig 7: Identifying Wiring Diagram - ATC-AC,A-07

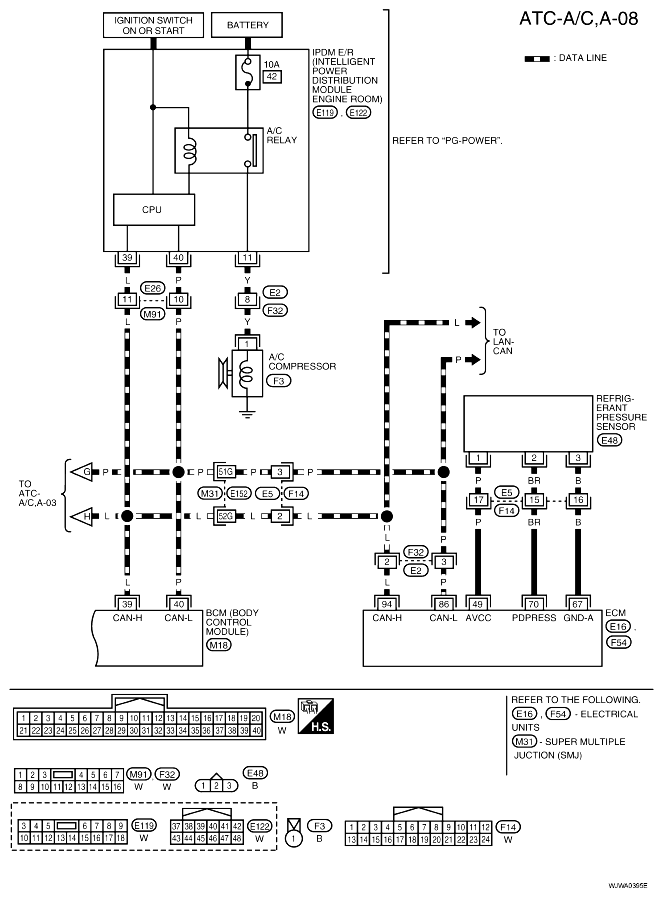

Fig 8: Identifying Wiring Diagram - ATC-AC,A-08
