Evacuating System and Charging Refrigerant
WARNING:
This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

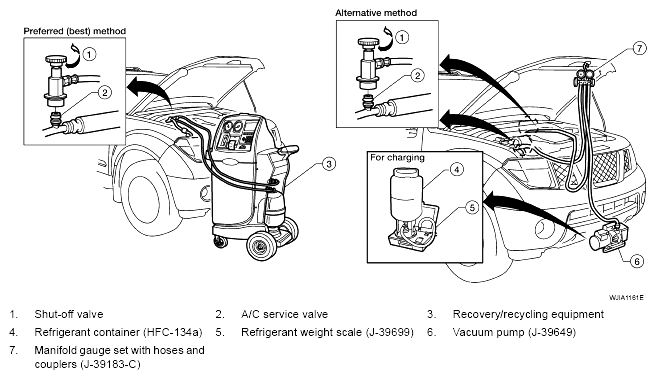

Fig 1: Identifying Evacuating System And Charging Refrigerant System Components

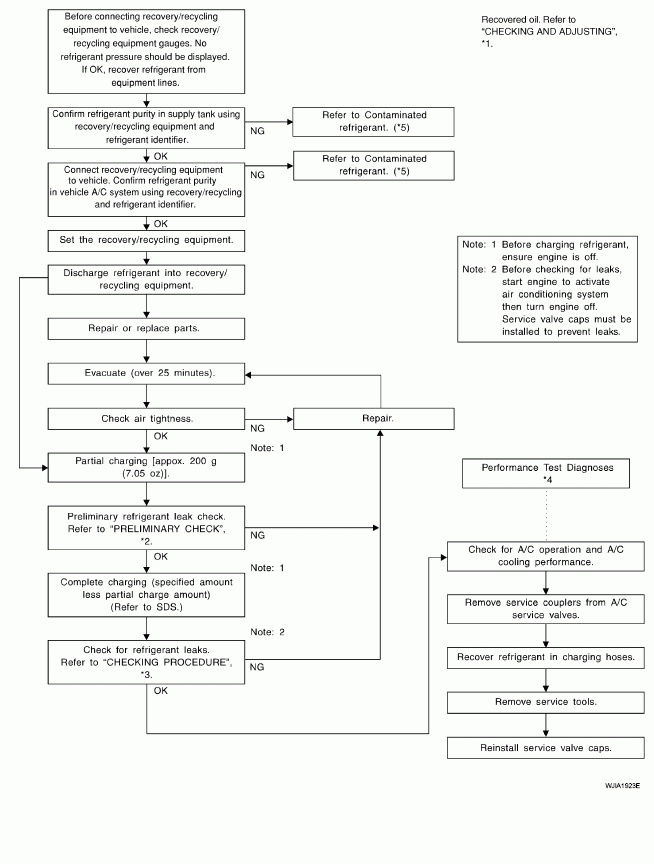

Fig 2: Identifying Diagnostic Flow Chart
(*1) CHECKING AND ADJUSTING
(*2) Checking for Refrigerant Leaks
(*3) Checking for Refrigerant Leaks
(*4) PERFORMANCE TEST DIAGNOSES
(*5) Contaminated Refrigerant
