WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

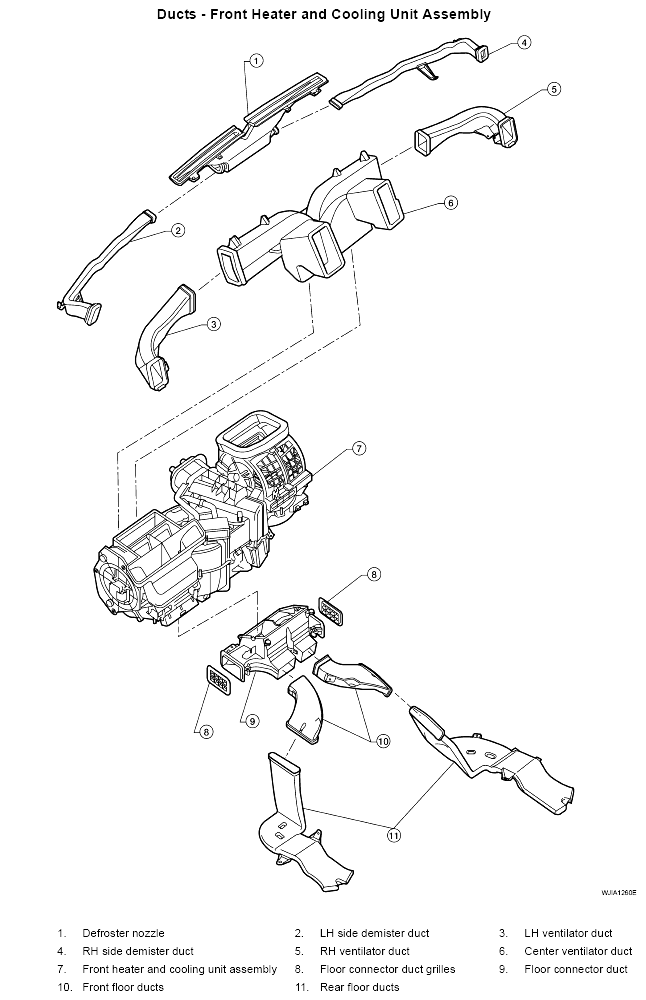

Fig 1: Identifying Ducts Components (Front Heater And Cooling Unit Assembly)

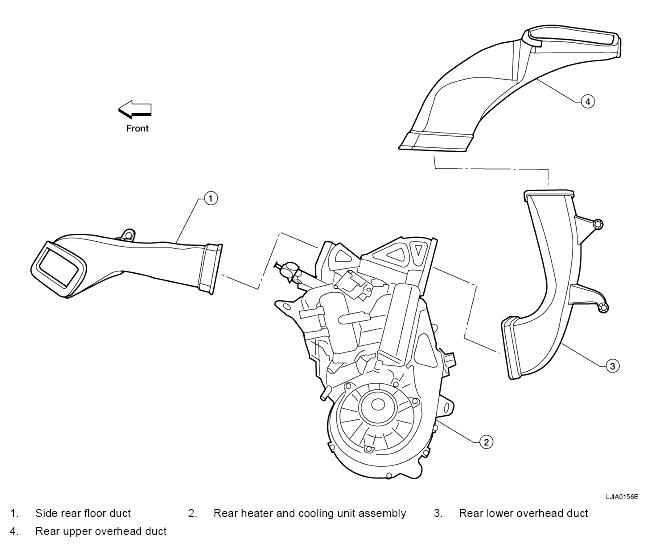

Fig 2: Identifying Ducts Components (Rear Heater And Cooling Unit Assembly)
