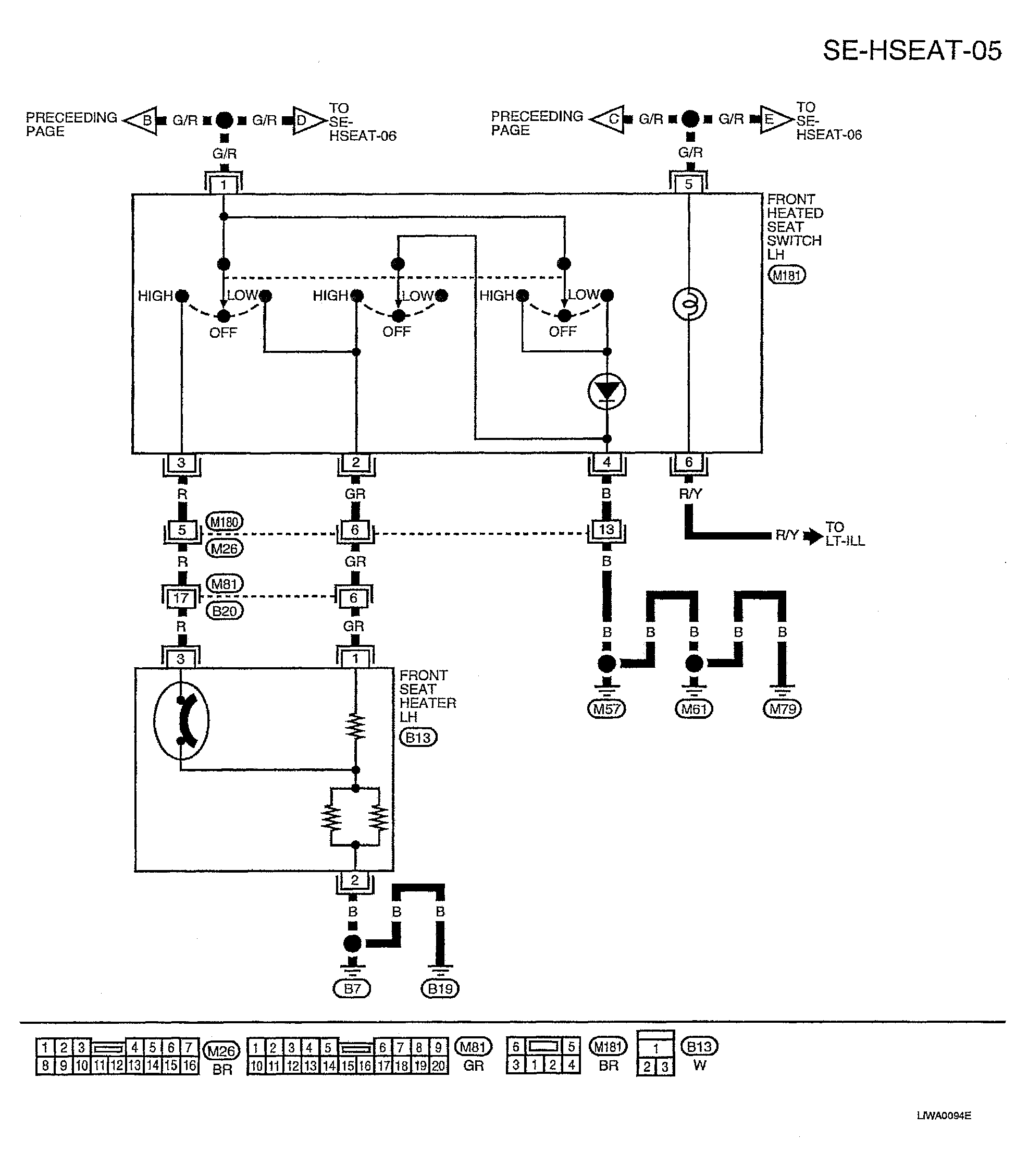

With Front Left And Right Heated Seats

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For PG-POWER, refer to POWER SUPPLY ROUTING CIRCUIT - ROADSTER - 2004 .

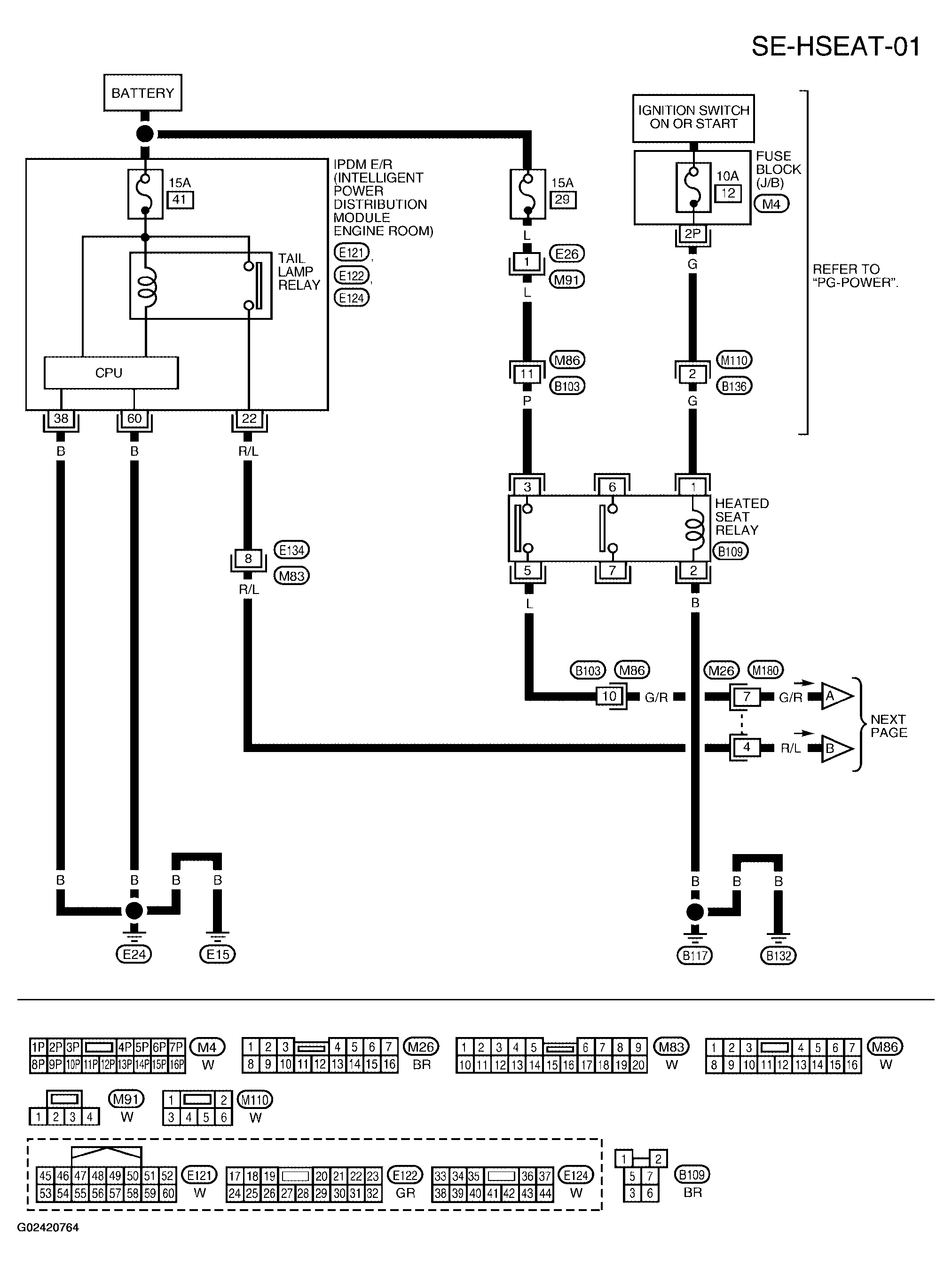

Fig 1: Wiring Diagram - SE-HSEAT-01

Courtesy of NISSAN MOTOR CO., U.S.A.

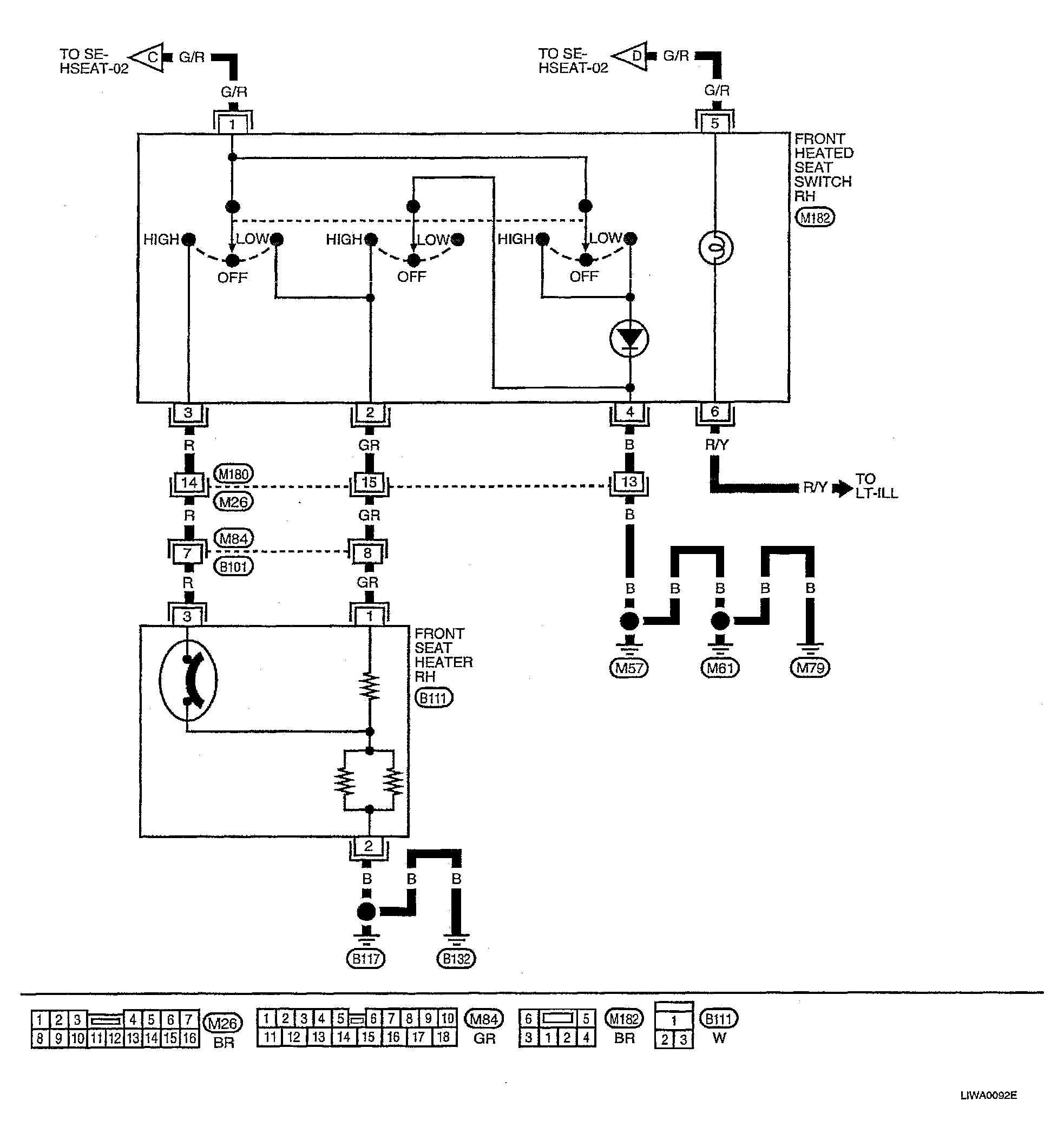

Fig 2: Wiring Diagram - SE-HSEAT-02

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Wiring Diagram - SE-HSEAT-03

Courtesy of NISSAN MOTOR CO., U.S.A.
