Ignition Power Supply - Ignition SW. In "On" And/Or "Start"

WARNING: This page is about a different car, the 2004 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

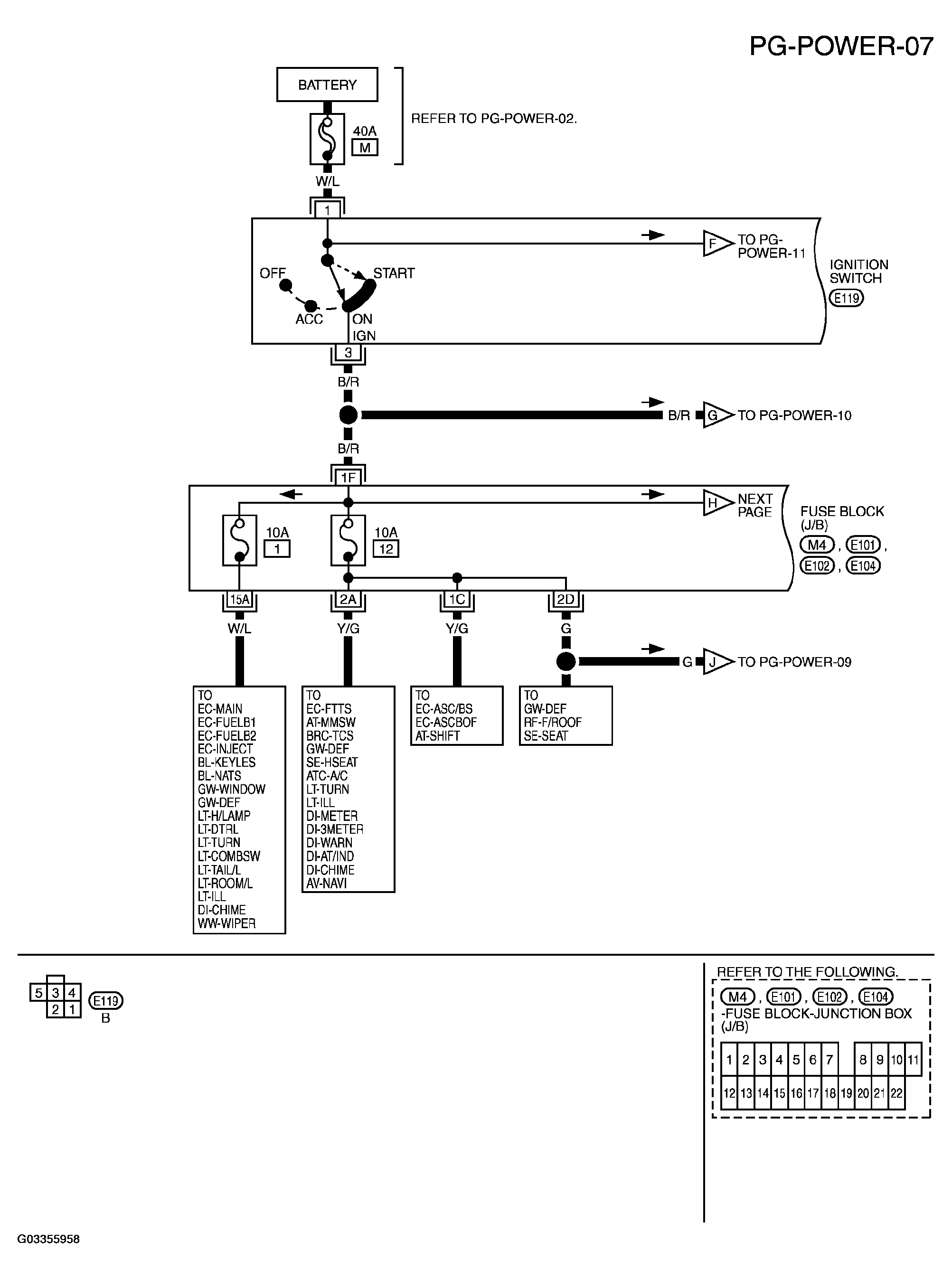

Fig 1: Ignition Power Supply - PG-Power-07

Courtesy of NISSAN MOTOR CO., U.S.A.

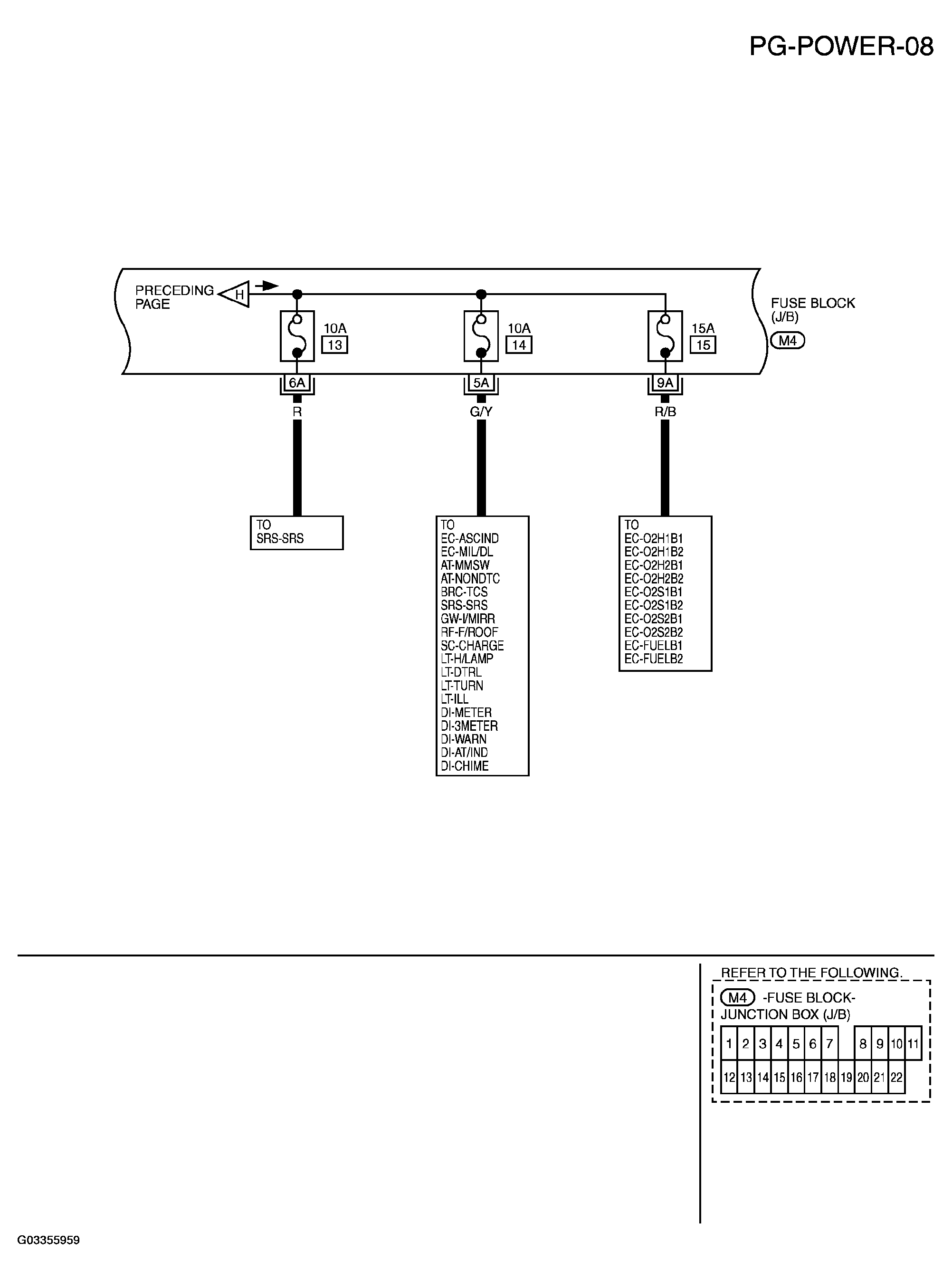

Fig 2: Ignition Power Supply - PG-Power-08

Courtesy of NISSAN MOTOR CO., U.S.A.

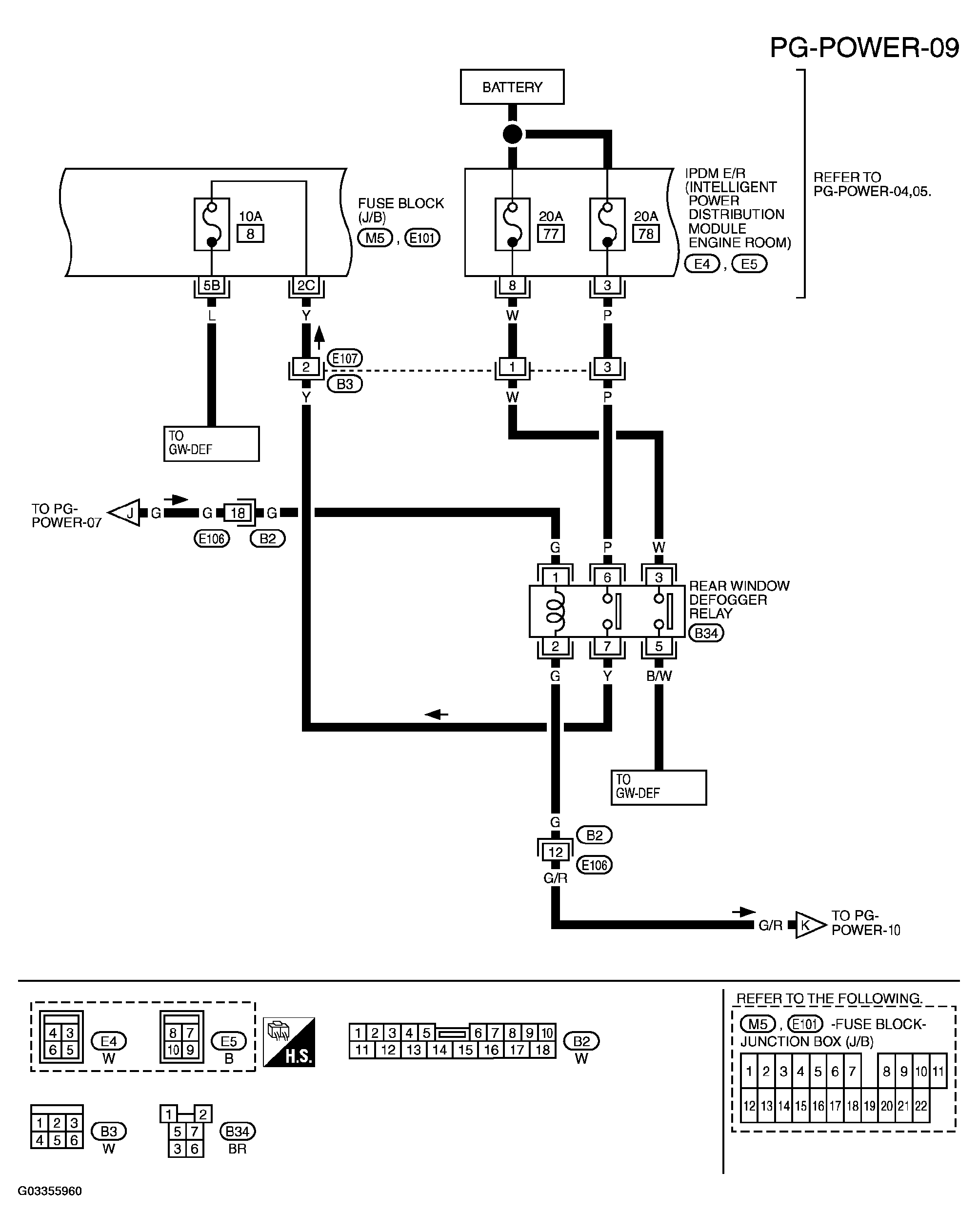

Fig 3: Ignition Power Supply - PG-Power-09

Courtesy of NISSAN MOTOR CO., U.S.A.

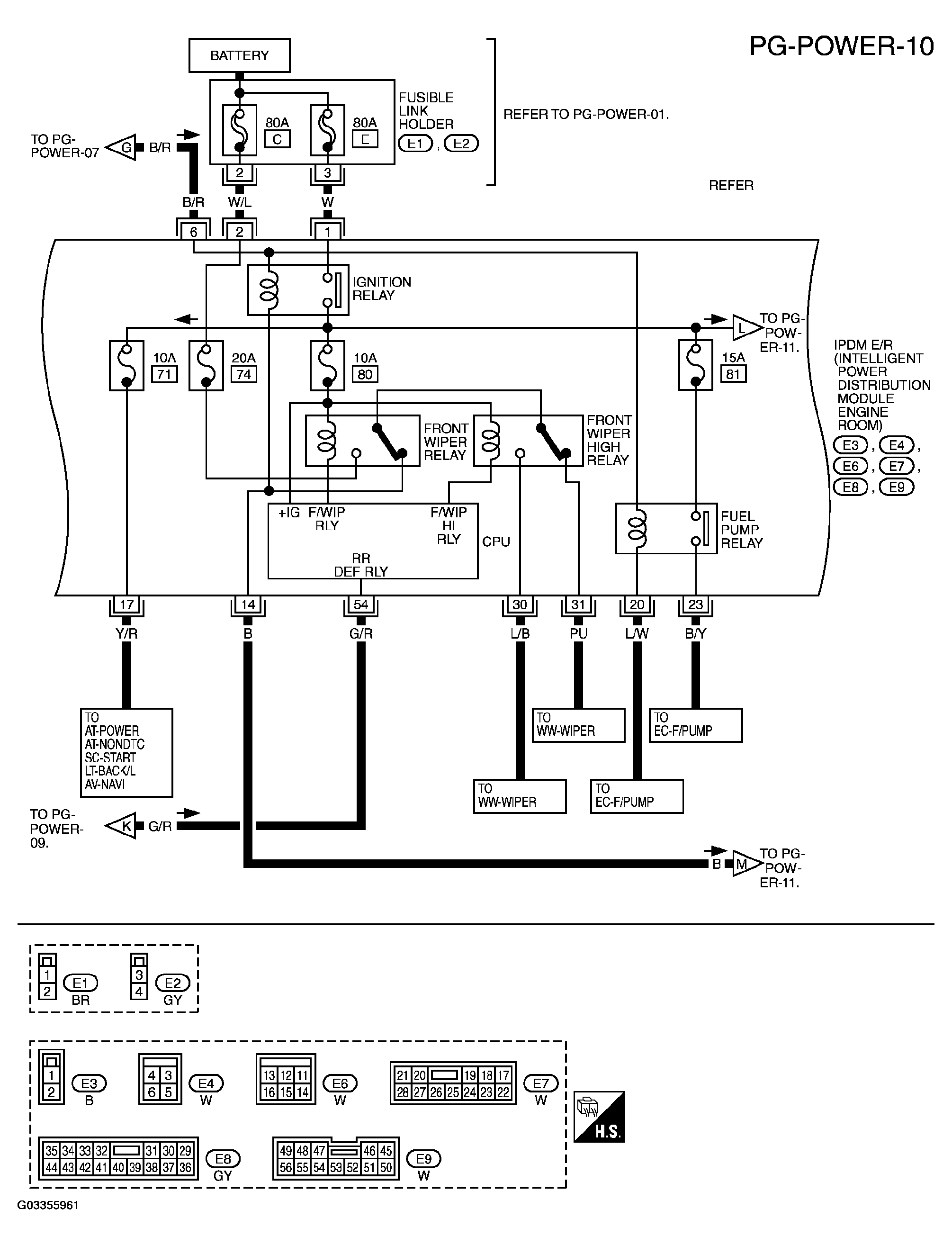

Fig 4: Ignition Power Supply - PG-Power-10

Courtesy of NISSAN MOTOR CO., U.S.A.

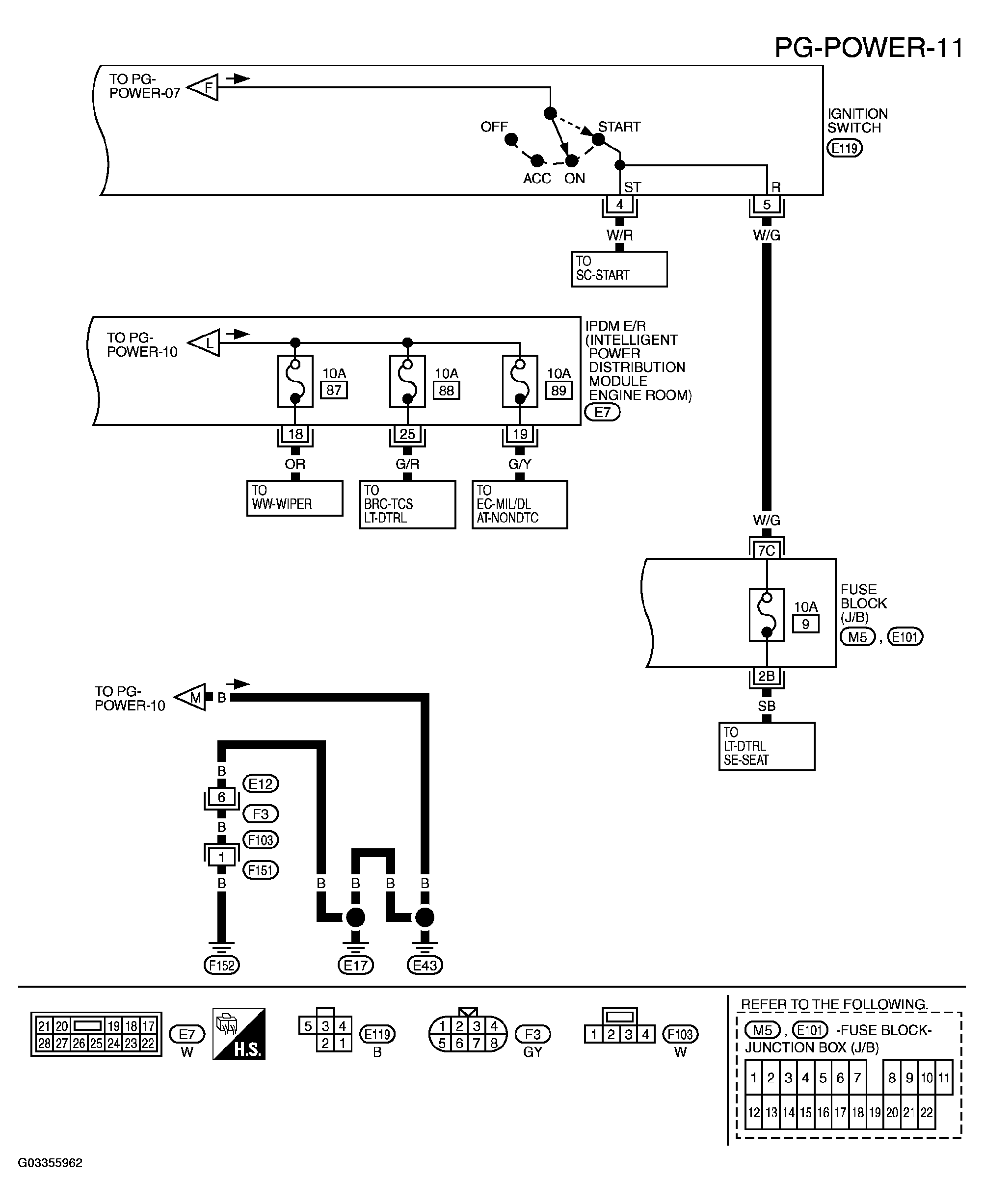

Fig 5: Ignition Power Supply - PG-Power-11

Courtesy of NISSAN MOTOR CO., U.S.A.
