Battery Power Supply - Ignition SW. In Any Position

WARNING: This page is about a different car, the 2004 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

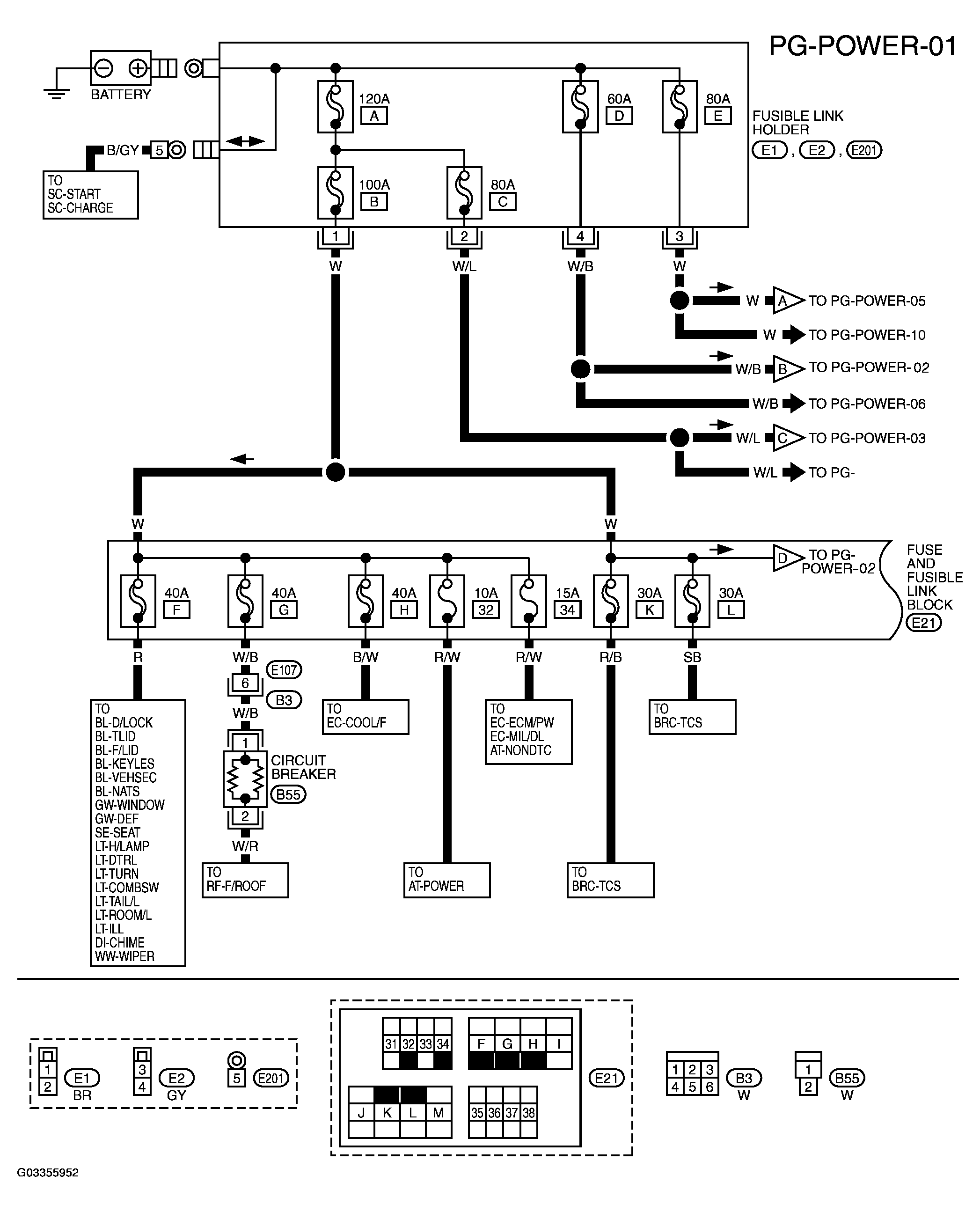

Fig 1: Battery Power Supply - PG-Power-01

Courtesy of NISSAN MOTOR CO., U.S.A.

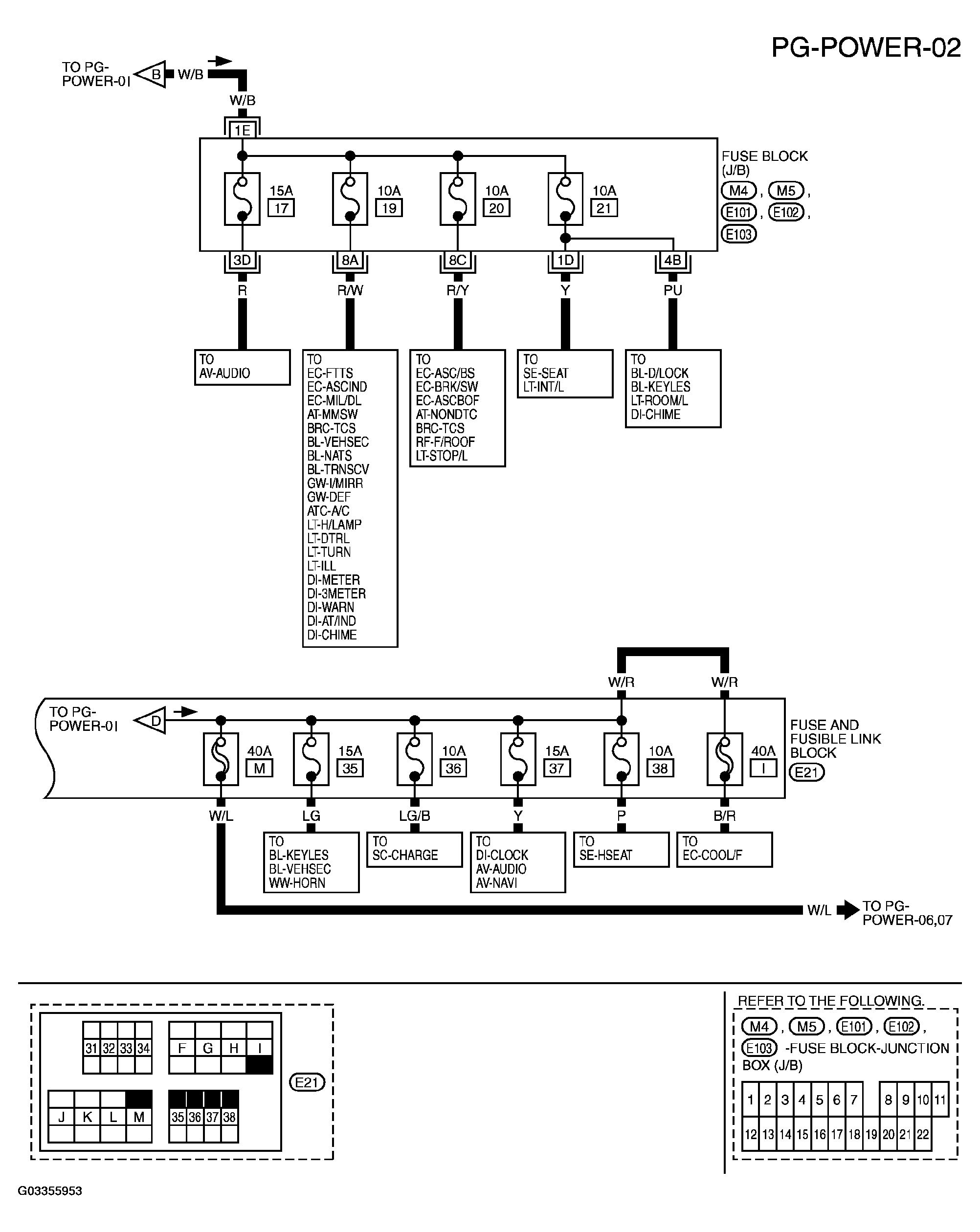

Fig 2: Battery Power Supply - PG-Power-02

Courtesy of NISSAN MOTOR CO., U.S.A.

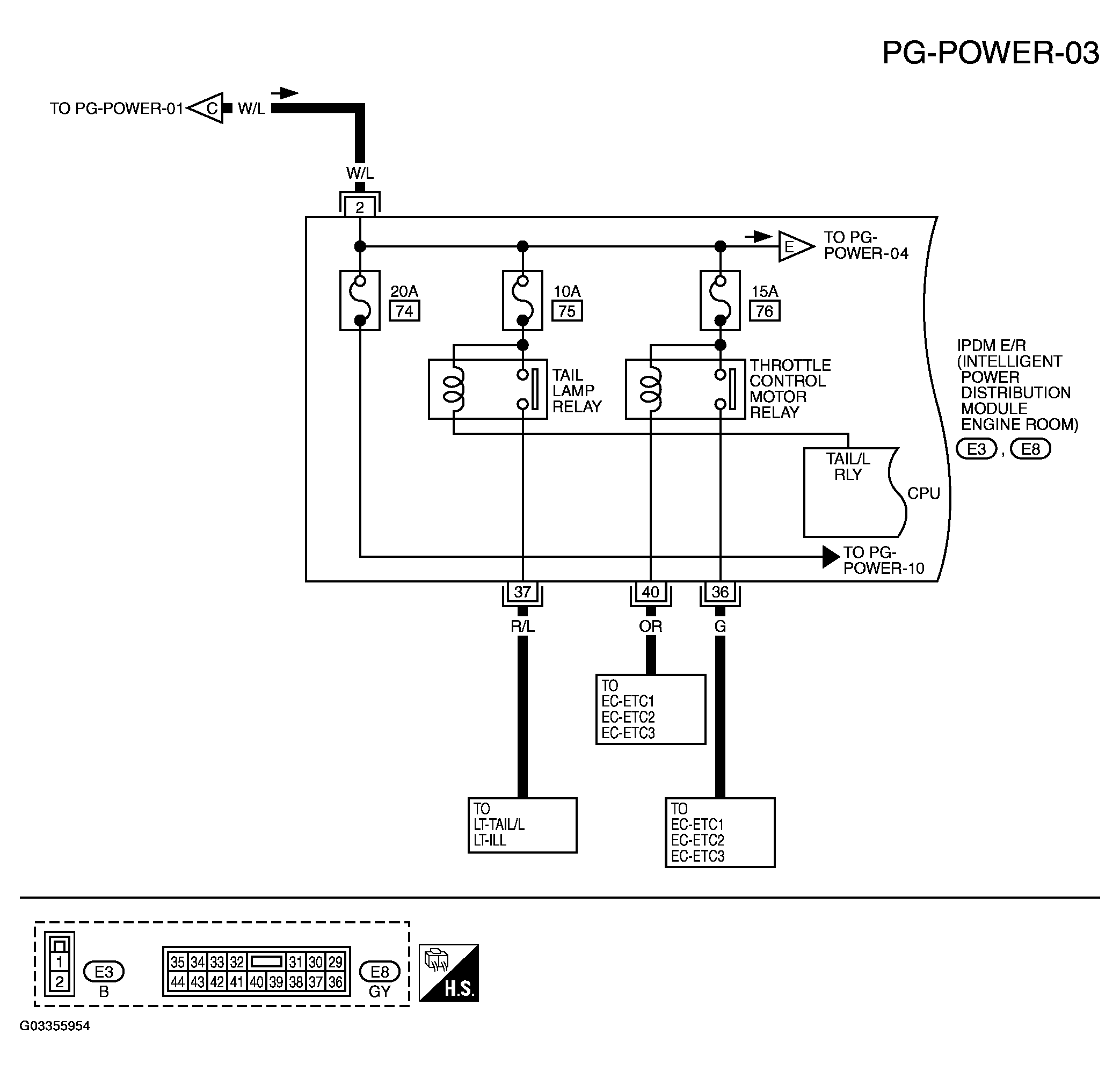

Fig 3: Battery Power Supply - PG-Power-03

Courtesy of NISSAN MOTOR CO., U.S.A.

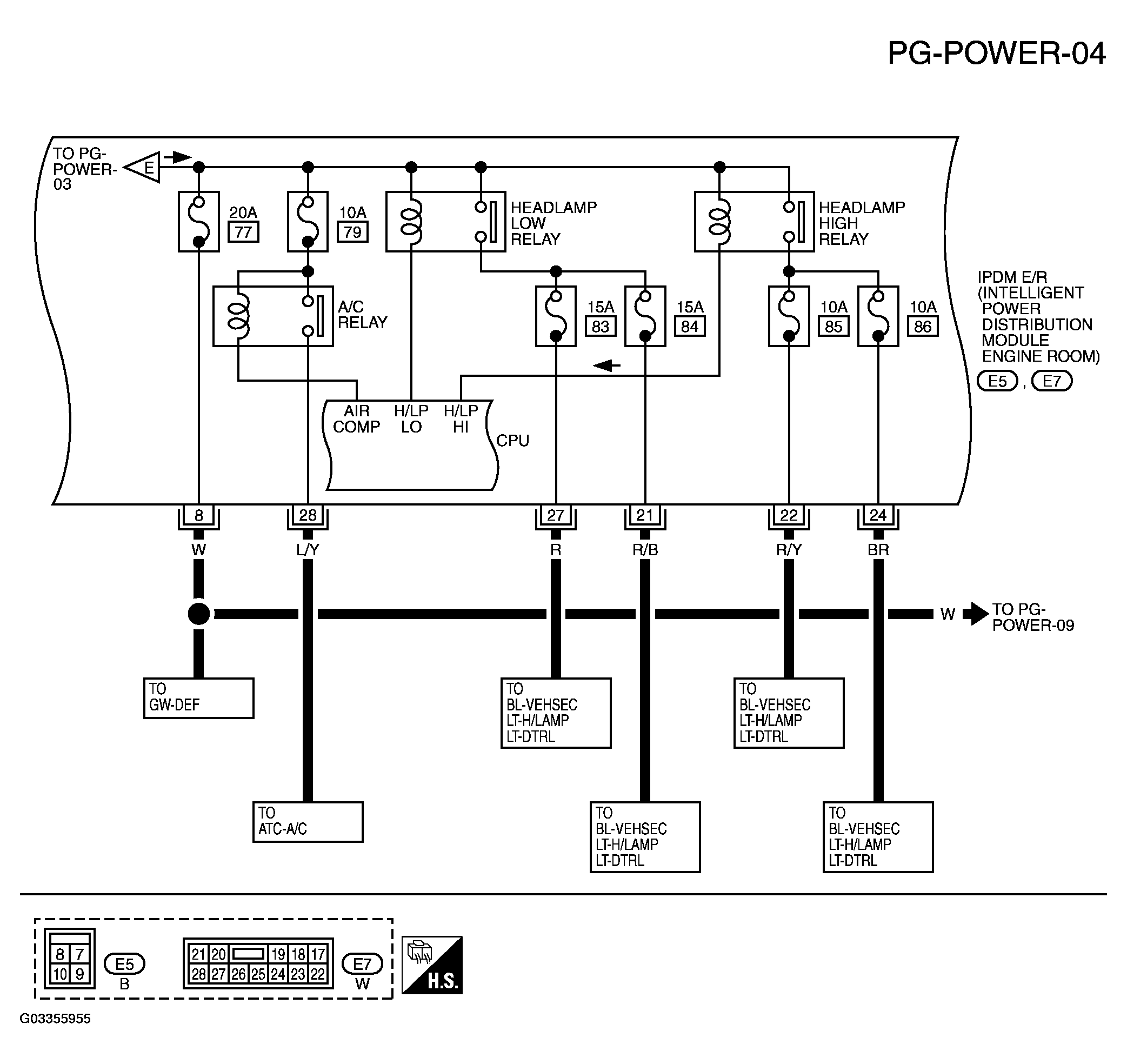

Fig 4: Battery Power Supply - PG-Power-04

Courtesy of NISSAN MOTOR CO., U.S.A.

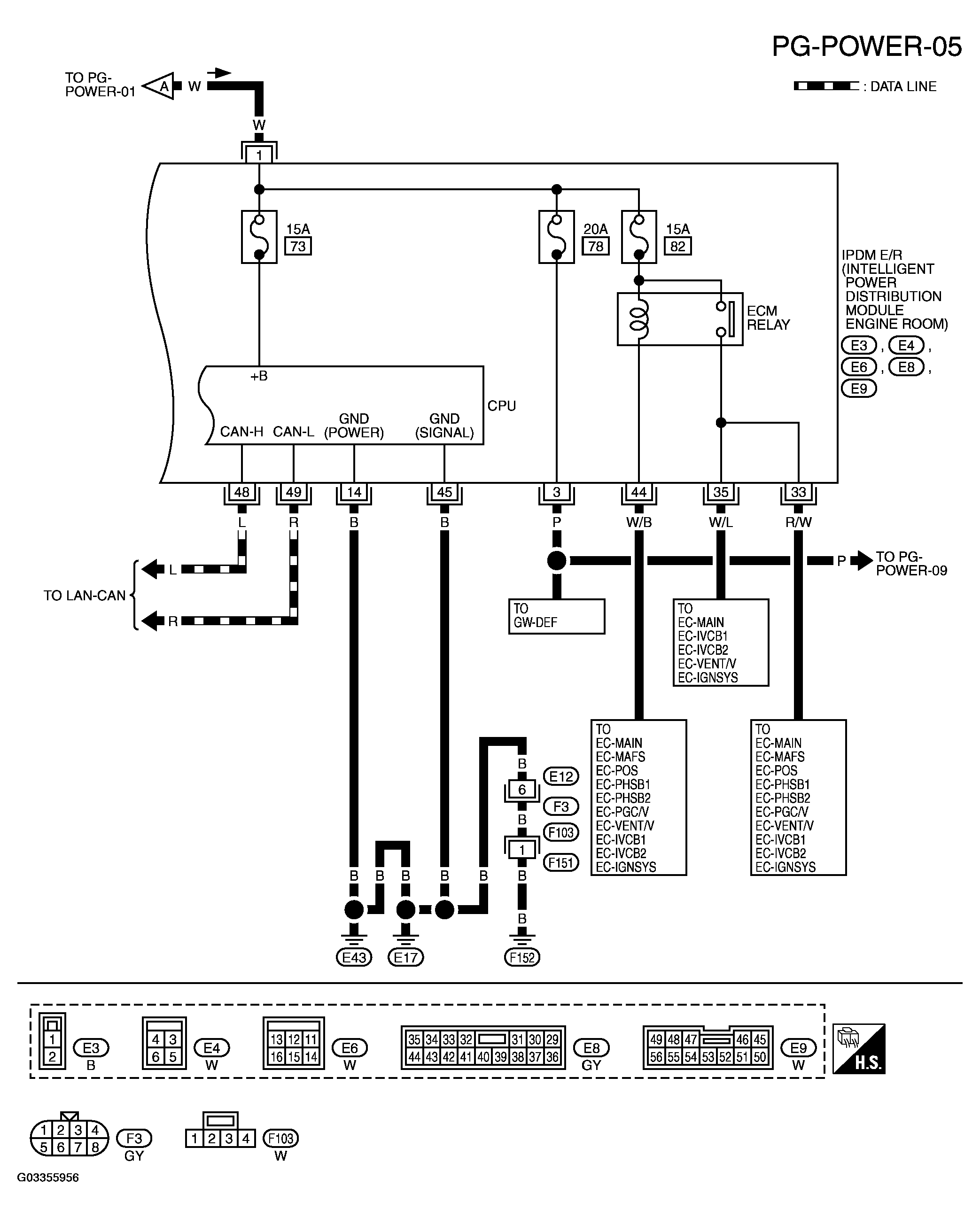

Fig 5: Battery Power Supply - PG-Power-05

Courtesy of NISSAN MOTOR CO., U.S.A.
