Removal & Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Remove headliner. See HEADLINER .
Remove and discard 3 rearmost bolts from appropriate curtain air bag module. Disconnect curtain air bag module connector. Remove and discard remaining curtain air bag module bolts. See Fig 1 . Remove curtain air bag module.
To install, reverse removal procedure. Tighten NEW curtain air bag module bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

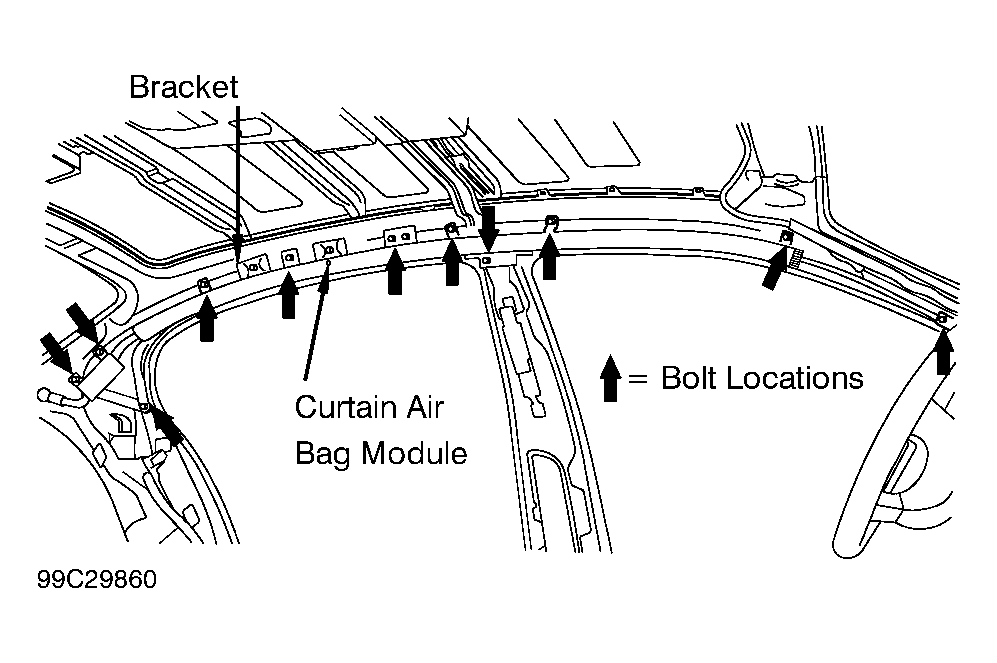

Fig 1: Identifying Curtain Air Bag Module

Courtesy of NISSAN MOTOR CO., U.S.A.
