Removal & Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS  . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  .
  2. Disconnect crash zone sensor connector. Remove and discard nuts securing crash zone sensor to bracket. Remove crash zone sensor. See Fig 1 .
  3. To install, reverse removal procedure. Tighten NEW crash zone sensor nuts to specification. See TORQUE SPECIFICATIONS  . Activate air bag system.

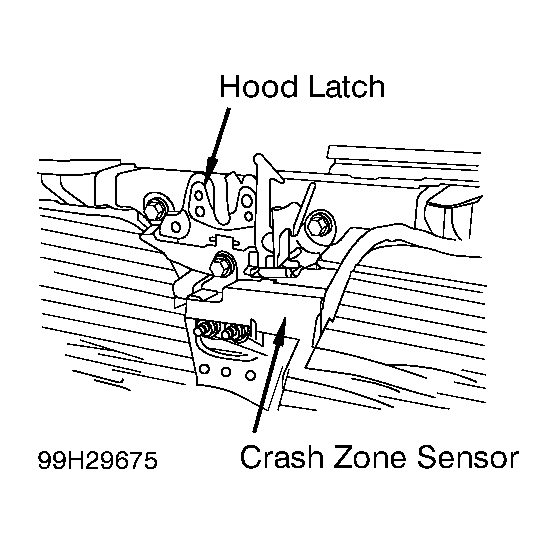

Fig 1: Identifying Crash Zone Sensor
G99H29675Courtesy of NISSAN MOTOR CO., U.S.A.
