Lower Driver Instrument Panel

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "Cluster Lid C ".
  2. Remove fuse box cover.

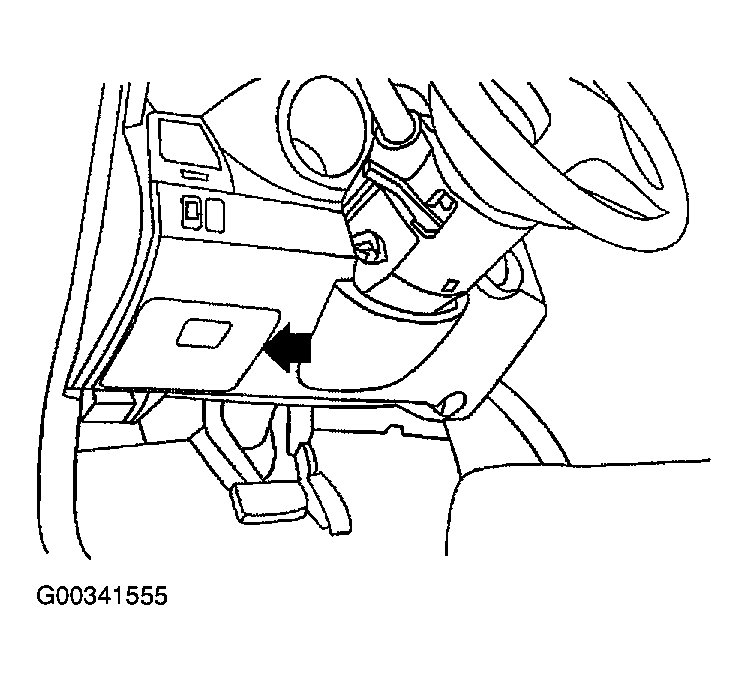

    Fig 1: Locating Fuse Box Cover
    G00341555Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws using power tool, and remove lower driver instrument panel.
    • Pull to disconnect clips.
    • Disconnect aspirator tube and in vehicle temperature sensor.
    • Disconnect harnesses from back of lower driver instrument panel.

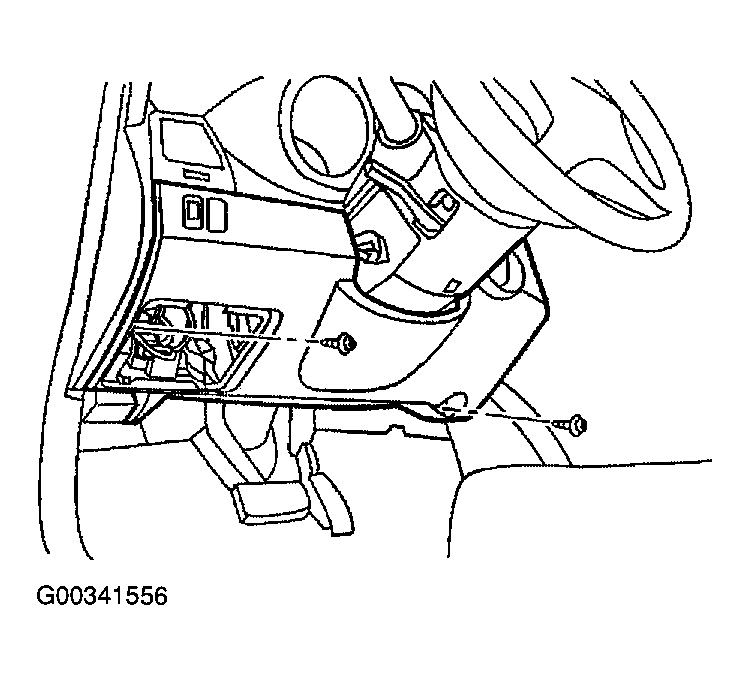

    Fig 2: Locating Lower Driver Instrument Panel Fasteners
    G00341556Courtesy of NISSAN MOTOR CO., U.S.A.
