Diagnosis Procedure

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF
    2. Loosen and retighten three ground screws on the body. Refer to "GROUND INSPECTION ".

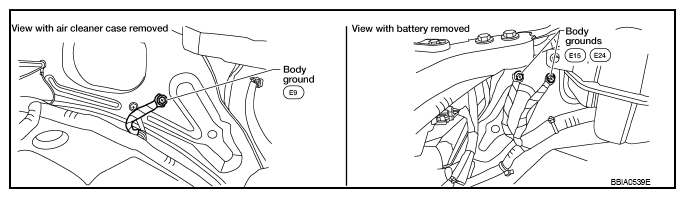

    Fig 1: Checking Ground Connections
    G08170735Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: GO TO 2.

    NG: Repair or replace ground connections.

  2. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I

    Check voltage between ECM terminal 3 and ground under the following conditions with CONSULT or tester.

    Ignition switch Voltage
    OFF Approximately 0V
    ON Battery voltage (11 - 14V)

    OK or NG

    OK: GO TO  9.

    NG: GO TO 3.

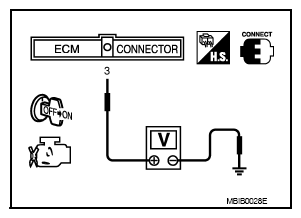

    Fig 2: Checking Voltage Between ECM Terminal 3 And Ground Using Tester
    G08170736Courtesy of NISSAN NORTH AMERICA, INC.
  3. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
    1. Turn ignition switch OFF.
    2. Check voltage between ECM terminal 104 and ground with CONSULT or tester.

    Voltage: Battery voltage

    OK or NG

    OK: GO TO  6.

    NG: GO TO 4.

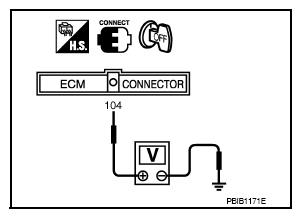

    Fig 3: Checking Voltage Between ECM Terminal 104 And Ground Using Tester
    G08170737Courtesy of NISSAN NORTH AMERICA, INC.
  4. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
    1. Disconnect ECM harness connector.
    2. Disconnect IPDM E/R harness connector E122.
    3. Check continuity between ECM terminal 104 and IPDM E/R terminal 47.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

    4. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 5.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  5. CHECK FUSE
    1. Disconnect 20 A fuse (No. 52). For the fuse arrangement, refer to "IPDM E/R TERMINAL ARRANGEMENT ".
    2. Check 20A fuse for blown.

    OK or NG

    OK: GO TO  8.

    NG: Replace 20A fuse.

  6. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Disconnect IPDM E/R harness connector E119.
    4. Check continuity between ECM terminal 3 and IPDM E/R terminal 6.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

    5. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO  8.

    NG: GO TO 7.

  7. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E2, F32
    • Harness for open or short between ECM and IPDM E/R

    Repair open circuit or short to ground or short to power in harness or connectors.

  8. CHECK INTERMITTENT INCIDENT

    Refer to "INTERMITTENT INCIDENT ".

    OK or NG

    OK: Replace IPDM E/R. Refer to "REMOVAL AND INSTALLATION OF IPDM E/R ".

    NG: Repair or replace harness or connectors.

  9. CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
    1. Turn ignition switch OFF.
    2. Disconnect electric throttle control actuator harness connector.
    3. Disconnect ECM harness connector.
    4. Check harness continuity between the following terminals.

      Refer to WIRING DIAGRAM .

      Electric throttle control actuator terminal ECM terminal Continuity
      5 5 Should not exist
      4 Should exist
      6 5 Should exist
      4 Should not exist
    5. Also check harness for short to ground and short to power.

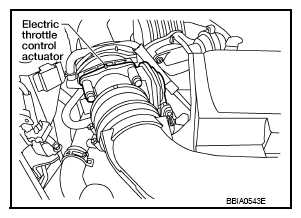

    Fig 4: Identifying Engine Throttle Control Actuator Harness Connector
    G08170738Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: GO TO 10.

    NG: Repair or replace.

  10. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
    1. Remove the intake air duct. Refer to "REMOVAL AND INSTALLATION ".
    2. Check if foreign matter is caught between the throttle valve and the housing.

    OK or NG

    OK: GO TO 11.

    NG: Remove the foreign matter and clean the electric throttle control actuator inside, and then perform throttle valve closed position learning. Refer to "THROTTLE VALVE CLOSED POSITION LEARNING ".

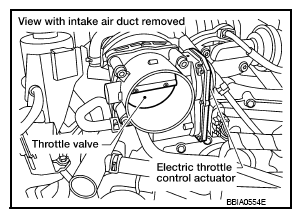

    Fig 5: Identifying Electric Throttle Control Actuator And Throttle Valve
    G08170739Courtesy of NISSAN NORTH AMERICA, INC.
  11. CHECK THROTTLE CONTROL MOTOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO  12.

    NG: GO TO  13.

  12. CHECK INTERMITTENT INCIDENT

    Refer to "INTERMITTENT INCIDENT ".

    OK or NG

    OK: GO TO 13.

    NG: Repair or replace harness or connectors.

  13. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

    Replace the electric throttle control actuator. Refer to "REMOVAL AND INSTALLATION ".

    INSPECTION END
