VIAS Control Solenoid Valve

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

With CONSULT

Reconnect harness connectors disconnected.
Turn ignition switch ON.
Perform "VIAS S/V-1" in "ACTIVE TEST" mode.
Check air passage continuity and operation delay time under the following conditions.

Condition VIAS SOL VALVE	Air passage continuity between (A) and (B)	Air passage continuity between (A) and (C)
ON	Yes	No
OFF	No	Yes

Operation takes less than 1 second .

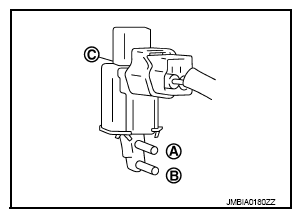

Fig 1: Checking Air Passage Continuity And Operation Delay Time Between A And B Ports

Courtesy of NISSAN NORTH AMERICA, INC.

With GST

Check air passage continuity and operation delay time under the following conditions.

Condition	Air passage continuity between (A) and (B)	Air passage continuity between (A) and (C)
12V direct current supply between terminals 1 and 2	Yes	No
No supply	No	Yes

Operation takes less than 1 second .

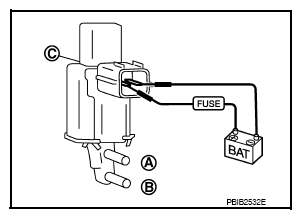

Fig 2: Checking Air Passage Continuity And Operation Delay Time

Courtesy of NISSAN NORTH AMERICA, INC.
