Stop Lamp Switch
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF.
- Disconnect stop lamp switch harness connector.

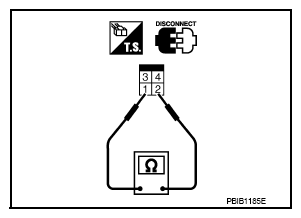

- Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.
| Condition | Continuity |
|---|---|
| When brake pedal: Fully released. | Should not exist. |
| When brake pedal: Slightly depressed. | Should exist. |
If NG, adjust stop lamp switch installation, refer to "INSPECTION AND ADJUSTMENT - STANDARD PEDAL ", and perform step 3 again.
