Battery Current Sensor

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reconnect harness connectors disconnected.
  2. Disconnect battery negative cable.
  3. Install jumper cable between battery negative terminal and body ground.
  4. Turn ignition switch ON.

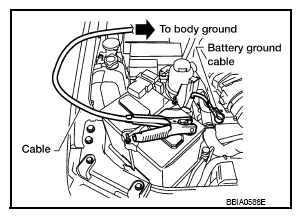

    Fig 1: Installing Jumper Cable Between Battery Negative Terminal And Body Ground
    G08170708Courtesy of NISSAN NORTH AMERICA, INC.
  5. Check voltage between ECM terminal 71 (battery current sensor signal) and ground.

    Voltage: Approximately 2.5V

  6. If NG, replace battery negative cable assembly.

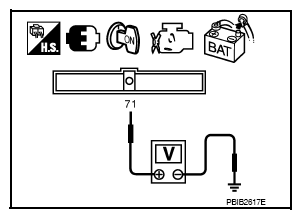

Fig 2: Checking Voltage Between ECM Terminal 71 And Ground
G08170709Courtesy of NISSAN NORTH AMERICA, INC.
