Overall Function Check
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Use this procedure to check the overall function of the park/neutral position (PNP) signal circuit. During this check, a 1st trip DTC might not be confirmed.
WITH GST
- Turn ignition switch ON.

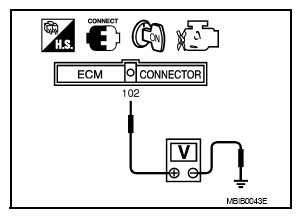

- Check voltage between ECM terminal 102 (PNP signal) and ground under the following conditions.
Condition (Gear position) Voltage V (Known-good data) P or N position Approx. 0 Except above position BATTERY VOLTAGE (11 - 14V) - If NG, go to "DIAGNOSIS PROCEDURE ".
