Fuel Tank Temperature Sensor

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fuel level sensor unit. Refer to "REMOVAL AND INSTALLATION ".
  2. Check resistance between "fuel level sensor unit and fuel pump" terminals 3 and 4 by heating with hot water or heat gun as shown in the figure.
Temperature °C (°F) Resistance kΩ
20 (68) 2.3 - 2.7
50 (122) 0.79 - 0.90

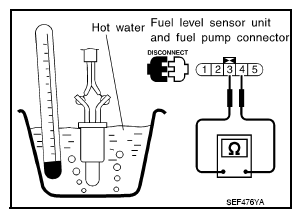

Fig 1: Checking Resistance Between Fuel Level Sensor Unit And Fuel Pump Terminals 3 And 4 By Heating With Hot Water
G08170536Courtesy of NISSAN NORTH AMERICA, INC.
