Diagnosis Procedure

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to "GROUND INSPECTION ".

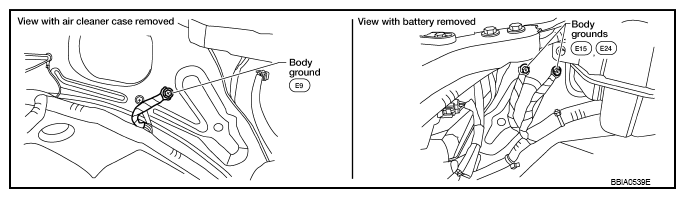

Fig 1: Checking Ground Connections
Courtesy of NISSAN NORTH AMERICA, INC.

OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.
CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.

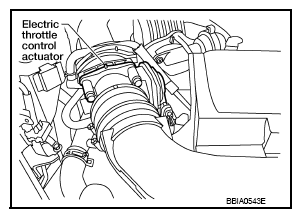

  Fig 2: Identifying Engine Throttle Control Actuator Harness Connector
  Courtesy of NISSAN NORTH AMERICA, INC.
3. Check voltage between electric throttle control actuator terminal 2 and ground with CONSULT or tester.
Voltage: Approximately 5V

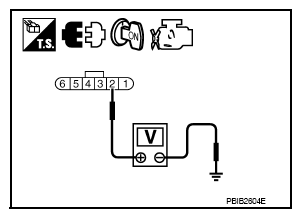

Fig 3: Checking Voltage Between Electric Throttle Control Actuator Terminal 2 And Ground Using Tester
Courtesy of NISSAN NORTH AMERICA, INC.

OK or NG

OK: GO TO 7.

NG: GO TO 3.
CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 2 and ECM terminal 47. Refer to WIRING DIAGRAM .
Continuity should exist .

OK or NG

OK: GO TO 4.

NG: Repair open circuit.

CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-III

Check harness for short to power and short to ground, between the following terminals.

ECM terminal	Sensor terminal	Reference Wiring Diagram
47	Electric throttle control actuator terminal 2	WIRING DIAGRAM
91	APP sensor terminal 1	WIRING DIAGRAM

OK or NG

OK: GO TO 5.

NG: Repair short to ground or short to power in harness or connectors.

CHECK APP SENSOR
Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 11.

NG: GO TO 6.
REPLACE ACCELERATOR PEDAL ASSEMBLY
Replace accelerator pedal assembly. Refer to "REMOVAL AND INSTALLATION ".

>> INSPECTION END
CHECK THROTTLE POSITION SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 4 and ECM terminal 66. Refer to WIRING DIAGRAM .
  Continuity should exist .
4. Also check harness for short to ground and short to power.
OK or NG

OK: GO TO 8.

NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK THROTTLE POSITION SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 69 and electric throttle control actuator terminal 3. Refer to WIRING DIAGRAM .
  Continuity should exist .
2. Also check harness for short to ground and short to power.
OK or NG

OK: GO TO 9.

NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK THROTTLE POSITION SENSOR
Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 11.

NG: GO TO 10.
REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
Replace the electric throttle control actuator. Refer to "REMOVAL AND INSTALLATION ".

>> INSPECTION END
CHECK INTERMITTENT INCIDENT
Refer to "INTERMITTENT INCIDENT ".

>> INSPECTION END
