Power Steering Pressure Sensor
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- Reconnect all harness connectors disconnected.
- Start engine and let it idle.

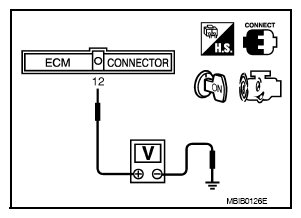

- Check voltage between ECM terminal 12 and ground under the following conditions.
| Condition |
Voltage |
| Steering wheel: being turned |
0.5 - 4.5V |
| Steering wheel: not being turned |
0.4 - 0.8V |
