Diagnosis Procedure

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUEL FILLER CAP DESIGN
    1. Turn ignition switch OFF.
    2. Check for genuine NISSAN fuel filler cap design.

    OK or NG

    OK: GO TO 2.

    NG: Replace with genuine NISSAN fuel filler cap. Refer to "REMOVAL AND INSTALLATION ".

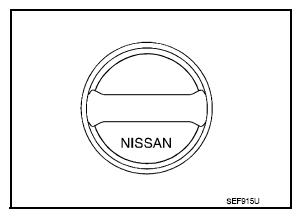

    Fig 1: Identifying Nissan Fuel Filler Cap
    G08170644Courtesy of NISSAN NORTH AMERICA, INC.
  2. CHECK FUEL FILLER CAP INSTALLATION

    Check that the cap is tightened properly by rotating the cap clockwise.

    OK or NG

    OK: GO TO 3.

    NG >>

    1. Open fuel filler cap, then clean cap and fuel filler neck threads using air blower.
    2. Retighten until ratcheting sound is heard.
  3. CHECK FUEL FILLER CAP FUNCTION

    Check for air releasing sound while opening the fuel filler cap.

    OK or NG

    OK: GO TO  5.

    NG: GO TO 4.

  4. CHECK FUEL TANK VACUUM RELIEF VALVE

    Refer to "DESCRIPTION ".

    OK or NG

    OK: GO TO 5.

    NG: Replace fuel filler cap with a genuine one. Refer to "REMOVAL AND INSTALLATION ".

  5. CHECK EVAP PURGE LINE

    Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks, improper connection or disconnection.

    Refer to "DESCRIPTION ".

    OK or NG

    OK: GO TO 6.

    NG: Repair or reconnect the hose.

  6. CLEAN EVAP PURGE LINE

    Clean EVAP purge line (pipe and rubber tube) using air blower.

    GO TO 7.

  7. CHECK EVAP CANISTER VENT CONTROL VALVE

    Check the following.

    • EVAP canister vent control valve is installed properly.

      Refer to "REMOVAL AND INSTALLATION ".

    • EVAP canister vent control valve.

    Refer to "REMOVAL AND INSTALLATION ".

    OK or NG

    OK: GO TO 8.

    NG: Repair or replace EVAP canister vent control valve and O-ring. Refer to "REMOVAL AND INSTALLATION ".

  8. INSTALL THE PRESSURE PUMP

    To locate the EVAP leak, install EVAP service port adapter and pressure pump to EVAP service port securely.

    NOTE: Improper installation of the EVAP service port adapter to the EVAP service port may cause leaking.

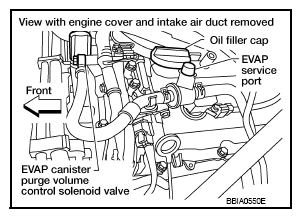

    Fig 2: Identifying Oil Filler Cap, EVAP Service Port And Canister Purge Volume Control Solenoid Valve
    G08170645Courtesy of NISSAN NORTH AMERICA, INC.

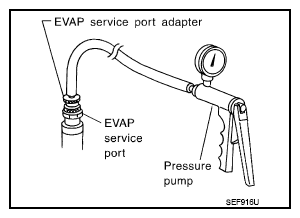

    Fig 3: Connecting Pressure Pump To EVAP Service Port Adapter
    G08170646Courtesy of NISSAN NORTH AMERICA, INC.

    With CONSULT>>GO TO 9.

    Without CONSULT>>GO TO  10.

  9. CHECK FOR EVAP LEAK

    With CONSULT

    1. Turn ignition switch ON.
    2. Select "EVAP SYSTEM CLOSE" of "WORK SUPPORT" mode with CONSULT.
    3. Touch "START" and apply pressure into the EVAP line until the pressure indicator reaches the middle of the bar graph.
      CAUTION:
      • Never use compressed air or a high pressure pump.
      • Never exceed 4.12 kPa (0.042 kg/cm2 , 0.6 psi) of pressure in the system.
    4. Using EVAP leak detector, locate the EVAP leak. For the leak detector, refer to the instruction manual for more details.

    Refer to "DESCRIPTION ".

    OK or NG

    OK: GO TO  11.

    NG: Repair or replace.

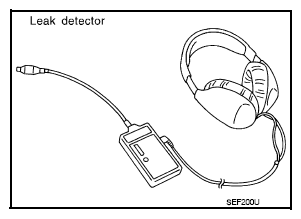

    Fig 4: Identifying EVAP Leak Detector
    G08170647Courtesy of NISSAN NORTH AMERICA, INC.
  10. CHECK FOR EVAP LEAK

    Without CONSULT

    1. Turn ignition switch OFF.
    2. Apply 12 volts DC to EVAP canister vent control valve (3). The valve will close. (Continue to apply 12 volts until the end of test.)
      • Fuel filler pipe (top of frame view) (1)
      • EVAP control system pressure sensor (2)
      • EVAP canister (4)
      • Drain filter (5)
      • : Vehicle front
    3. Pressurize the EVAP line using pressure pump with 1.38 to 2.76 kPa (0.014 to 0.028 kg/cm2 , 0.29 to 0.4 psi), then remove pump and EVAP service port adapter.
      CAUTION:
      • Never use compressed air or a high pressure pump.
      • Never exceed 4.12 kPa (0.042 kg/cm2 , 0.6 psi) of pressure in the system.

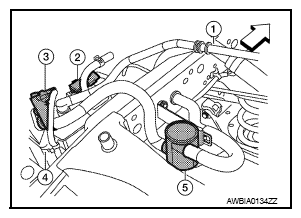

      Fig 5: Identifying Fuel Filler Pipe, EVAP Control System Pressure Sensor, EVAP Canister Vent Control Valve, EVAP Canister And Drain Filter
      G08170648Courtesy of NISSAN NORTH AMERICA, INC.
    4. Using EVAP leak detector, locate the EVAP leak. For the leak detector, refer to the instruction manual for more details. Refer to "DESCRIPTION ".

    OK or NG

    OK: GO TO  12.

    NG: Repair or replace.

    Fig 6: Identifying EVAP Leak Detector
    G08170649Courtesy of NISSAN NORTH AMERICA, INC.
  11. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION

    With CONSULT

    1. Disconnect vacuum hose to EVAP canister purge volume control solenoid valve at EVAP service port.
    2. Start engine.
    3. Perform "PURG VOL CONT/V" in "ACTIVE TEST" mode.
    4. Touch "Qu" on CONSULT screen to increase "PURG VOL CONT/V" opening to 100%.
    5. Check vacuum hose for vacuum when revving engine up to 2, 000 RPM.

    OK or NG

    OK: GO TO  14.

    NG: GO TO  13.

  12. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION

    Without CONSULT

    1. Start engine and warm it up to normal operating temperature.
    2. Stop engine.
    3. Disconnect vacuum hose to EVAP canister purge volume control solenoid valve at EVAP service port.
    4. Start engine and let it idle for at least 80 seconds.
    5. Check vacuum hose for vacuum when revving engine up to 2, 000 RPM.

    Vacuum should exist  .

    OK or NG

    OK: GO TO  15.

    NG: GO TO 13.

  13. CHECK VACUUM HOSE

    Check vacuum hoses for clogging or disconnection. Refer to "DESCRIPTION ".

    OK or NG

    OK (With CONSULT)>>GO TO 14.

    OK (Without CONSULT)>>GO TO  15.

    NG: Repair or reconnect the hose.

  14. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

    With CONSULT

    1. Start engine.
    2. Perform "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT. Check that engine speed varies according to the valve opening.

    OK or NG

    OK: GO TO  16.

    NG: GO TO 15.

  15. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 16.

    NG: Replace EVAP canister purge volume control solenoid valve. Refer to "EXPLODED VIEW ".

  16. CHECK FUEL TANK TEMPERATURE SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 17.

    NG: Replace fuel level sensor unit. Refer to "REMOVAL AND INSTALLATION ".

  17. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 18.

    NG: Replace EVAP control system pressure sensor. Refer to "REMOVAL AND INSTALLATION ".

  18. CHECK EVAP/ORVR LINE

    Check EVAP/ORVR line between EVAP canister and fuel tank for clogging, kink, looseness and improper connection. For location, refer to "SYSTEM DESCRIPTION ".

    OK or NG

    OK: GO TO 19.

    NG: Repair or replace hoses and tubes.

  19. CHECK RECIRCULATION LINE

    Check recirculation line between filler neck tube and fuel tank for clogging, kink, cracks, looseness and improper connection.

    OK or NG

    OK: GO TO 20.

    NG: Repair or replace hose, tube or filler neck tube.

  20. CHECK REFUELING EVAP VAPOR CUT VALVE

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 21.

    NG: Replace refueling EVAP vapor cut valve with fuel tank. Refer to "REMOVAL AND INSTALLATION ".

  21. CHECK INTERMITTENT INCIDENT

    Refer to "INTERMITTENT INCIDENT ".

    INSPECTION END
