EVAP Canister Purge Volume Control Solenoid Valve

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

With CONSULT

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

Condition (PURG VOL CONT/V value)	Air passage continuity between (A) and (B)
100%	Yes
0%	No

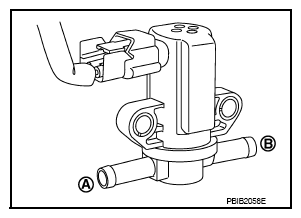

Fig 1: Checking Air Passage Continuity Between EVAP Canister Purge Volume Control Solenoid Valve Port A And B

Courtesy of NISSAN NORTH AMERICA, INC.

Without CONSULT

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

Condition	Air passage continuity between (A) and (B)
12V direct current supply between terminals 1 and 2	Yes
No supply	No

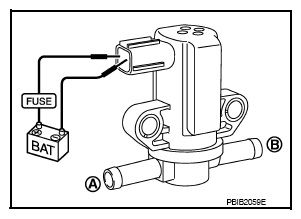

Fig 2: Applying 12V DC Supply Between EVAP Canister Purge Volume Control Solenoid Valve Terminals 1 And 2

Courtesy of NISSAN NORTH AMERICA, INC.
