Procedure For Malfunction A
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
TESTING CONDITION:
- Perform "DTC Confirmation Procedure" when the fuel level is between 1/4 and 3/4 full, and vehicle is placed on flat level surface.
- Always perform test at a temperature of 5 to 60°C (41 to 140°F).
- Cool the vehicle so that engine coolant temperature becomes same level as ambient temperature.
With CONSULT
- Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT.
- Check that the following condition are met.
FUEL T/TMP SE: 0 - 35°C (32 - 95°F)
- Start engine and wait at least 60 seconds.
- Check 1st trip DTC.
- If 1st trip DTC is detected, go to "DIAGNOSIS PROCEDURE ".
With GST
- Turn ignition switch ON.

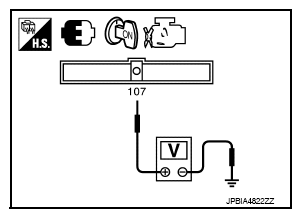

- Set voltmeter probes to ECM terminal 107 (FTT sensor signal) and ground.
- Check that the voltage is 3.1 - 4.2 V.
- Start engine and wait at least 60 seconds.
- Check 1st trip DTC.
- If 1st trip DTC is detected, go to "DIAGNOSIS PROCEDURE ".
