Diagnosis Procedure

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK STARTING SYSTEM

    Turn ignition switch to START position.

    Does the engine turn over?

    Does the starter motor operate?

    Yes or No

    Yes: GO TO 2.

    No: Check starting system. (Refer to "WORK FLOW ".)

  2. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body. Refer to "GROUND INSPECTION ".

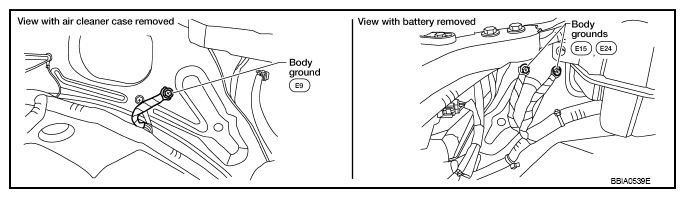

    Fig 1: Checking Ground Connections
    G08170563Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: GO TO 3.

    NG: Repair or replace ground connections.

  3. CHECK CAMSHAFT POSITION (CMP) SENSOR (PHASE) POWER SUPPLY CIRCUIT
    1. Disconnect camshaft position (CMP) sensor (PHASE) harness connector.
    2. Turn ignition switch ON.

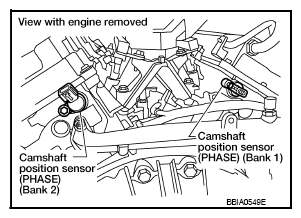

      Fig 2: Identifying Camshaft Position (CMP) Sensor (PHASE) Harness Connector
      G08170564Courtesy of NISSAN NORTH AMERICA, INC.
    3. Check voltage between CMP sensor (PHASE) terminal 3 and ground with CONSULT or tester.

      Voltage: Battery voltage

      OK or NG

      OK: GO TO  5.

      NG: GO TO 4.

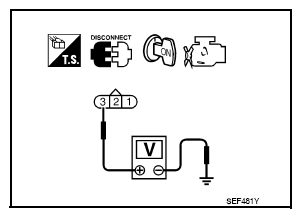

    Fig 3: Checking Voltage Between CMP Sensor (POS) Terminal 3 And Ground Using Tester
    G08170565Courtesy of NISSAN NORTH AMERICA, INC.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E2, F32
    • Harness for open or short between camshaft position sensor (PHASE) and ECM
    • Harness for open or short between camshaft position sensor (PHASE) and IPDM E/R

    Repair open circuit or short to ground or short to power in harness or connectors.

  5. CHECK CMP SENSOR (PHASE) GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between CMP sensor (PHASE) terminal 1 and ground.

      Continuity should exist  .

    3. Also check harness for short to power.

    OK or NG

    OK: GO TO  7.

    NG: GO TO 6.

  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F32, E2
    • Harness for open or short between CMP sensor (PHASE) and ground

    Repair open circuit or short to power in harness or connectors.

  7. CHECK CMP SENSOR (PHASE) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 33 (bank 1) or 14 (bank 2) and CMP sensor (PHASE) terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

    3. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 8.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  8. CHECK CAMSHAFT POSITION SENSOR (PHASE)

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 9.

    NG: Replace malfunctioning camshaft position sensor (PHASE). Refer to "EXPLODED VIEW ".

  9. CHECK CAMSHAFT (INTAKE)

    Check the following.

    • Accumulation of debris to the signal plate of camshaft rear end
    • Chipping signal plate of camshaft rear end

    OK or NG

    OK: GO TO 10.

    NG: Remove debris and clean the signal plate of camshaft rear end or replace malfunctioning camshaft. Refer to "REMOVAL AND INSTALLATION ".

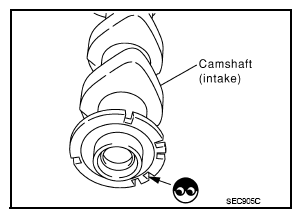

    Fig 4: Checking Camshaft Visually (Intake)
    G08170566Courtesy of NISSAN NORTH AMERICA, INC.
  10. CHECK INTERMITTENT INCIDENT

    Refer to "INTERMITTENT INCIDENT ".

    INSPECTION END
