Fuel Pressure Release

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

With CONSULT

  1. Turn ignition switch ON.
  2. Perform "FUEL PRESSURE RELEASE " in "WORK SUPPORT" mode with CONSULT.
  3. Start engine.
  4. After engine stalls, crank it two or three times to release all fuel pressure.
  5. Turn ignition switch OFF.

Without CONSULT

  1. Remove fuel pump fuse (No. 48) located in IPDM E/R.
  2. Start engine.
  3. After engine stalls, crank it two or three times to release all fuel pressure.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.

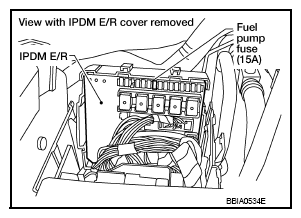

Fig 1: Identifying Fuel Pump Fuse And IPDM E/R
G08170908Courtesy of NISSAN NORTH AMERICA, INC.
