Intake Air Temperature Sensor

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between intake air temperature sensor terminals 5 and 6 under the following conditions.

Intake air temperature [°C (°F)]	Resistance (kΩ)
25 (77)	1.800 - 2.200

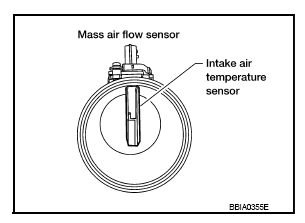

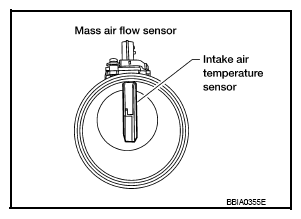

Fig 1: Identifying Mass Air Flow And Intake Air Temperature Sensors

Courtesy of NISSAN NORTH AMERICA, INC.

If NG, replace mass air flow sensor (with intake air temperature sensor). Refer to AIR CLEANER AND AIR DUCT .

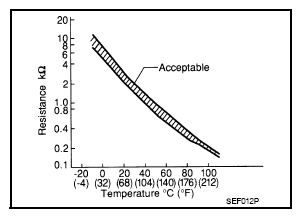

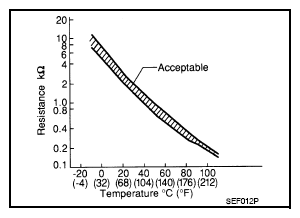

Fig 2: Fuel Tank Temperature Sensor Resistance Graph

Courtesy of NISSAN NORTH AMERICA, INC.
