Diagnosis Procedure

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK GROUND CONNECTION
    1. Turn ignition switch OFF.
    2. Check ground connection E9. Refer to Ground Inspection in "CIRCUIT INSPECTION ".

      Is the inspection result normal?

      YES: GO TO 2.

      NO: Repair or replace ground connection.

  2. RETIGHTEN A/F SENSOR 1

    Loosen and retighten the A/F sensor 1. Refer to "REMOVAL AND INSTALLATION ".

    : GO TO 3.

  3. CHECK EXHAUST GAS LEAKAGE
    1. Start engine and run it at idle.
    2. Listen for an exhaust gas leakage before three way catalyst (manifold).

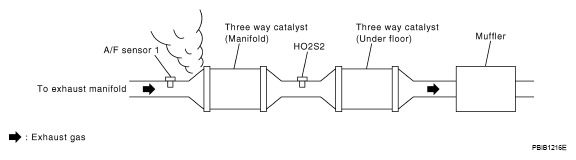

      Fig 1: Checking Exhaust Gas Leakage
      G05869774Courtesy of NISSAN MOTOR CO., U.S.A.

      Is exhaust gas leakage detected?

      YES: Repair or replace malfunctioning part.

      NO: GO TO 4.

  4. CHECK FOR INTAKE AIR LEAKAGE

    Listen for an intake air leakage after the mass air flow sensor.

    Is intake air leakage detected?

    YES: Repair or replace malfunctioning part.

    NO: GO TO 5.

  5. CLEAR MIXTURE RATIO SELF-LEARNING VALUE
    1. Clear the mixture ratio self-learning value. Refer to "MIXTURE RATIO SELF-LEARNING VALUE CLEAR: SPECIAL REPAIR REQUIREMENT ".
    2. Run engine for at least 10 minutes at idle speed.
    3. Check 1st trip DTC.

      Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected? Is it difficult to start engine?

      YES: Perform trouble diagnosis for DTC P0171, P0174 or P0172, P0175. Refer to "DTC LOGIC " or "DTC LOGIC ".

      NO: GO TO 6.

  6. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
    1. Disconnect A/F sensor 1 harness connector.
    2. Turn ignition switch ON.
    3. Check the voltage between A/F sensor 1 harness connector and ground.
      TERMINAL CONNECTOR REFERENCE CHART

      DTC A/F sensor 1 Ground Voltage
      Bank Connector Terminal
      P0133 1 F12 4 Ground Battery voltage
      P0153 2 F61 4
      Fig 2: Checking Voltage Between A/F Sensor 1 Harness Connector And Ground
      G05869775Courtesy of NISSAN MOTOR CO., U.S.A.

      Is the inspection result normal?

      YES: GO TO 8.

      NO: GO TO 7.

  7. DETECT MALFUNCTIONING PART

    Check the following.

    • IPDM E/R harness connector F10
    • 15 A fuse (No. 37)
    • Harness for open or short between A/F sensor 1 and fuse

      : Repair or replace harness or connectors.

  8. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check the continuity between A/F sensor 1 harness connector and ECM harness connector.
      TERMINAL CONNECTOR REFERENCE CHART

      DTC A/F sensor 1 ECM Continuity
      Bank Connector Terminal Connector Terminal
      P0133 1 F12 1 F13 45 Existed
      2 49
      P0153 2 F61 1 53
      2 57
    4. Check the continuity between A/F sensor 1 harness connector and ground, or ECM harness connector ground.
      TERMINAL CONNECTOR REFERENCE CHART

      DTC A/F sensor 1 Ground Continuity
      Bank Connector Terminal
      P0133 1 F12 1 Ground Not existed
      2
      P0153 2 F61 1
      2
      TERMINAL CONNECTOR REFERENCE CHART

      DTC ECM Ground Continuity
      Connector Terminal
      P0133 F13 45 Ground Not existed
      49
      P0153 53
      57
    5. Also check harness for short to power.

      Is the inspection result normal?

      YES: GO TO 9.

      NO: Repair open circuit, short to ground or short to power in harness or connectors.

  9. CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER

    Refer to "COMPONENT INSPECTION ".

    Is the inspection result normal?

    YES: GO TO 10.

    NO: GO TO 13.

  10. CHECK MASS AIR FLOW SENSOR

    Refer to "COMPONENT INSPECTION ".

    Is the inspection result normal?

    YES: GO TO 11.

    NO: Replace mass air flow sensor.

  11. CHECK PCV VALVE

    Refer to "COMPONENT INSPECTION ".

    Is the inspection result normal?

    YES: GO TO 12.

    NO: Repair or replace PCV valve.

  12. CHECK INTERMITTENT INCIDENT

    Perform "INTERMITTENT INCIDENT ".

    Is the inspection result normal?

    YES: GO TO 13.

    NO: Repair or replace malfunctioning part.

  13. REPLACE AIR FUEL RATIO (A/F) SENSOR 1

    Replace malfunctioning air fuel ratio (A/F) sensor 1.

    CAUTION:
    • Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
    • Before installing new A/F sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner [commercial service tool (J-43897-18 or J-43897-12)] and approved anti-seize lubricant (commercial service tool).

    : INSPECTION END
