Diagnostic Procedure

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws. Refer to "GROUND INSPECTION ".
      Fig 1: Locating Body Ground Screws
      G04895412Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: GO TO 2.

    NG: Repair or replace ground connections.

  2. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
    1. Disconnect A/F sensor 1 harness connector.

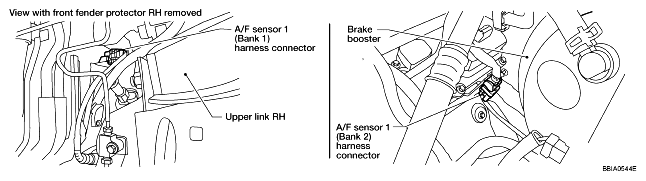

      Fig 2: Identifying A/F Sensor 1 Harness Connector
      G04911564Courtesy of NISSAN NORTH AMERICA, INC.
    2. Turn ignition switch ON.
    3. Check voltage between A/F sensor 1 terminal 4 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    OK or NG

    OK: GO TO  4.

    NG: GO TO 3.

    Fig 3: Checking Voltage Between A/F Sensor 1 Terminal 4 And Ground
    G04874929Courtesy of NISSAN NORTH AMERICA, INC.
  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E2, F32
    • IPDM E/R connector E119
    • 15A fuse
    • Harness for open or short between A/F sensor 1 and fuse

      Repair or replace harness or connectors.

  4. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.

      Refer to Wiring Diagram .

      CONTINUITY REFERENCE CHART

        A/F sensor 1 terminal ECM terminal
      Bank 1 1 35
      2 56
      Bank 2 1 16
      2 75

      Continuity should exist.

    4. Check harness continuity between the following terminals and ground.

      Refer to Wiring Diagram .

      CONTINUITY REFERENCE CHART

      Bank 1 Bank 2
      A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
      1 35 1 16
      2 56 2 75

      Continuity should not exist.

    5. Also check harness for short to power.

    OK or NG

    OK: GO TO 5.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  5. CHECK INTERMITTENT INCIDENT

    Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    OK or NG

    OK: GO TO 6.

    NG: Repair or replace.

  6. REPLACE A/F SENSOR 1

    Replace malfunctioning A/F sensor 1.

    CAUTION:
    • Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
    • Before installing new A/F sensor, clean exhaust system threads using Heated Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

    INSPECTION END
