Bank 1

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

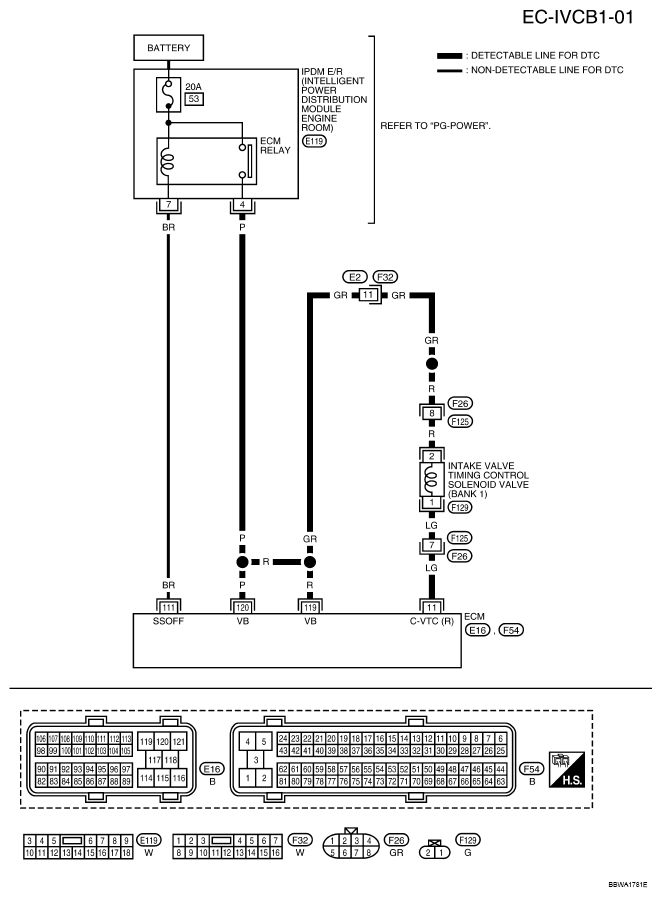

Fig 1: Identifying Wiring Diagram - EC-IVCB1-01

Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

SPECIFICATION DATA AND REFERENCE VALUES CHART

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

Intake valve timing control solenoid valve (Bank 1)

[Engine is running]

Warm-up condition
Idle speed

BATTERY VOLTAGE (11 - 14V)

[Engine is running]

Warm-up condition
Engine speed: 2, 500 rpm

7 - 12V⁽¹⁾

Courtesy of NISSAN NORTH AMERICA, INC.

111

ECM relay (Self shut-off)

[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition switch OFF

0 - 1.5V

[Ignition switch: OFF]

More than a few seconds after turning ignition switch OFF

BATTERY VOLTAGE (11 - 14V)

119
120

R
P

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE (11 - 14V)

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
