DTC P1217 Engine Over Temperature: Wiring Diagram

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

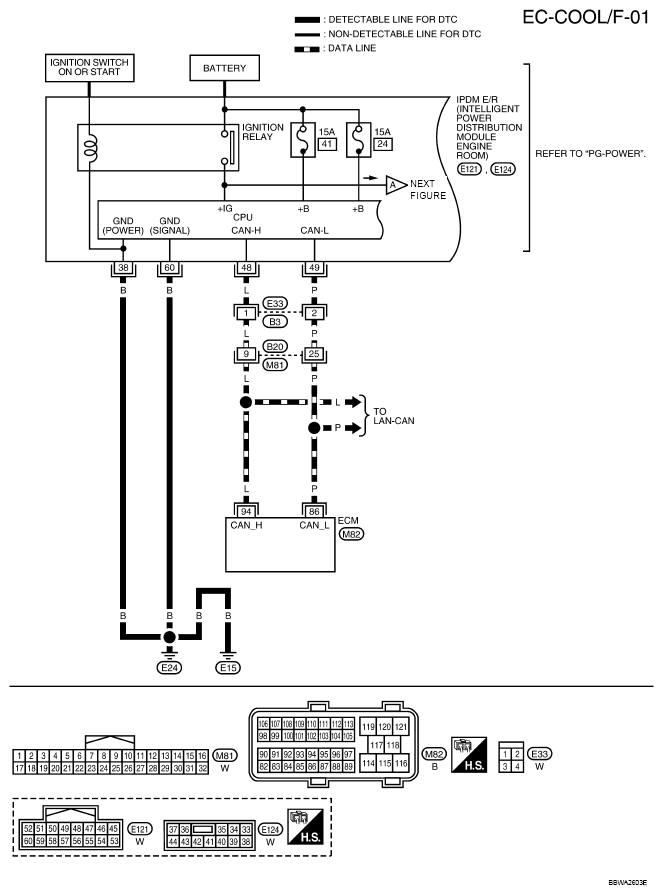

Fig 1: EC-COOL/F-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

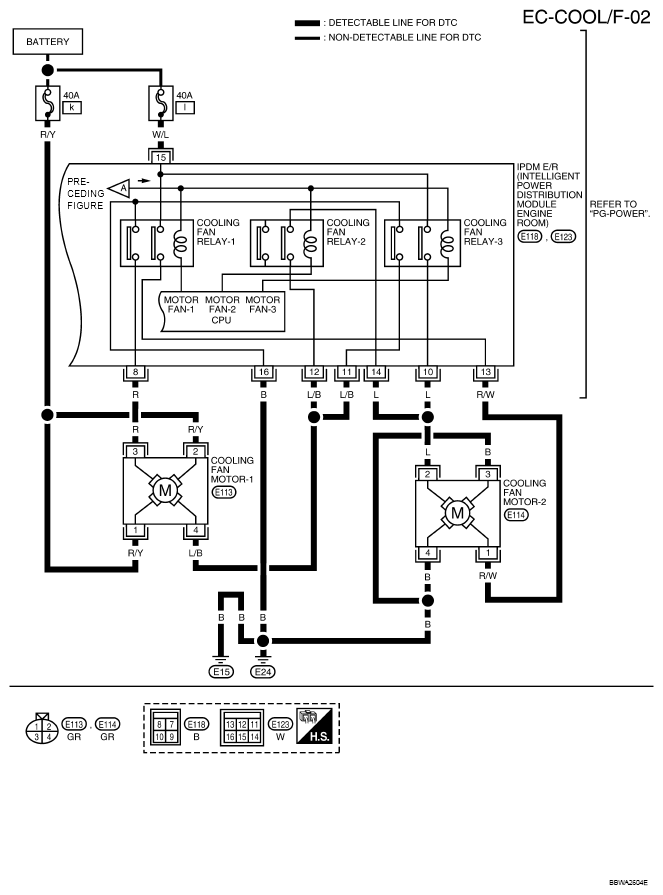

Fig 2: EC-COOL/F-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
