DTC P0112, P0113 IAT Sensor: Wiring Diagram

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

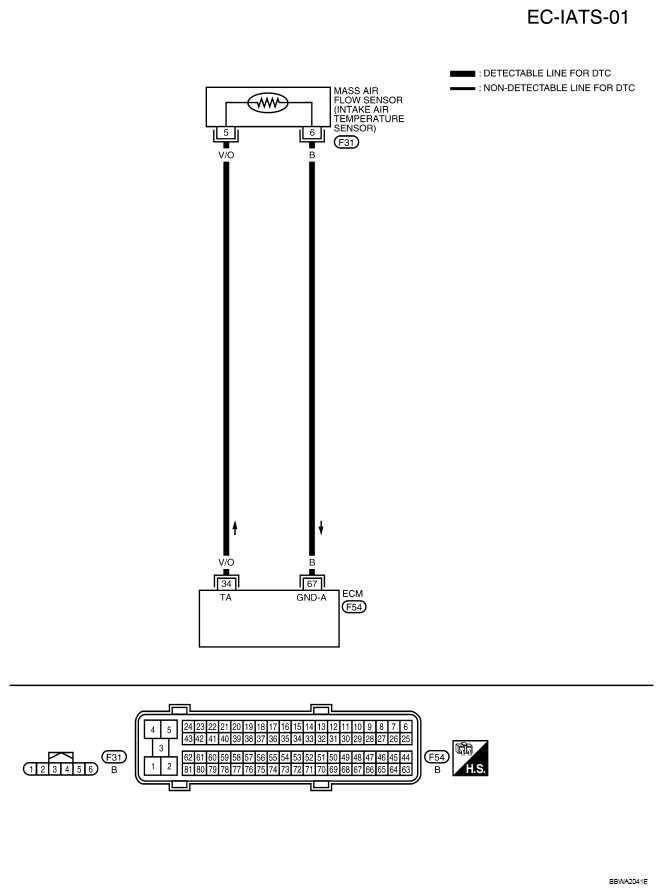

Fig 1: EC-IATS-01 - Wiring Diagram
G04915311Courtesy of NISSAN MOTOR CO., U.S.A.
