Engine Control Harness (VK56DE)

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

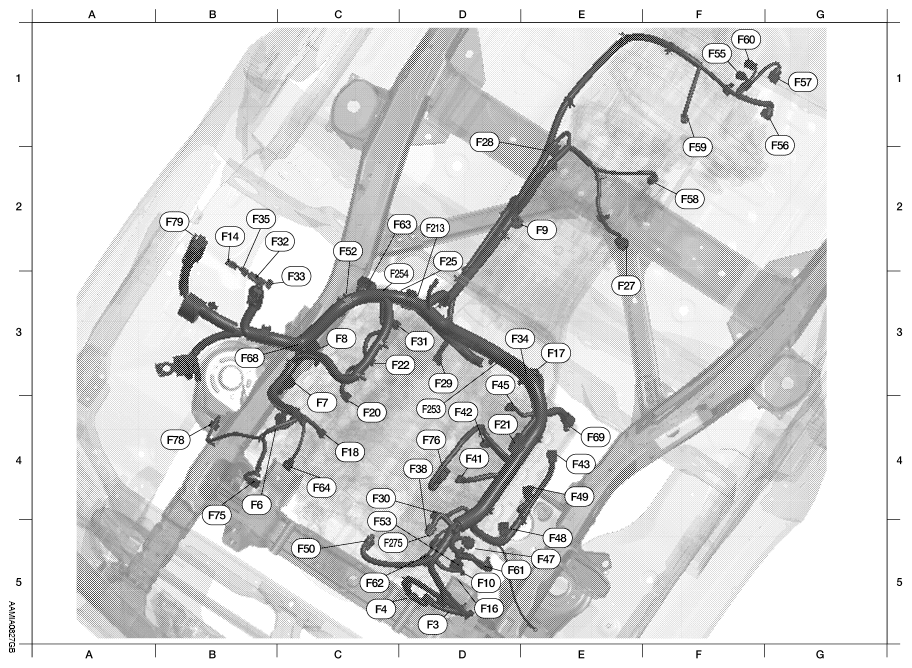

Fig 1: Identifying Engine Control Harness And Connectors (VK56DE)

Courtesy of NISSAN NORTH AMERICA, INC.

D5	F3	B/1	: A/C Compressor	D3	F45	GR/2	: Fuel injector No. 7
C5	F4	GR/1	: Oil pressure switch	E5	F47	GR/3	: Ignition coil No. 1 (with power transistor)
B4	F6	GR/3	: Ignition coil No. 2 (with power transistor)	E5	F48	GR/3	: Ignition coil No. 3 (with power transistor)
C4	F7	GR/3	: Ignition coil No. 4 (with power transistor)	E4	F49	GR/3	: Ignition coil No. 5 (with power transistor)
C3	F8	GR/3	: Ignition coil No. 6 (with power transistor)	C5	F50	W/6	: Electric throttle control actuator
E2	F9	G/10	: A/T assembly	C2	F52	GR/3	: Ignition coil No. 8 (with power transistor)
D5	F10	-	: Engine ground	C4	F53	B/6	: Mass air flow sensor
B2	F14	W/24	: To E5	F1	F55	B/2	: ATP switch (all-mode 4WD system)
D5	F16	-	: Engine ground	G2	F56	B/8	: Transfer terminal cord assembly
E3	F17	GR/1	: Starter motor	G1	F57	B/2	: Transfer motor (all-mode 4WD)
C4	F18	GR/2	: Fuel injector No. 2	F2	F58	GR/6	: Transfer control device (all-mode 4WD system)
C4	F20	GR/2	: Fuel injector No. 4	F2	F59	B/2	: Wait detection switch (all-mode 4WD system)
D4	F21	W/2	: Condenser-1	F1	F60	GR/2	: Neutral 4LO switch (all-mode 4WD system)
D3	F22	GR/2	: Fuel injector No. 6	D5	F61	G/2	: Intake valve timing control solenoid valve (bank 1)
D2	F25	B/3	: Camshaft position sensor (PHASE)	C5	F62	B/3	: Intake valve timing control position sensor (bank 1)
E3	F27	G/4	: Heated oxygen sensor 2 (bank 1)	C2	F63	GR/4	: Air fuel ratio (A/F) sensor 1 (bank 2)
D1	F28	G/4	: Heated oxygen sensor 2 (bank 2)	C4	F64	B/3	: Intake valve timing control position sensor (bank 2)
D3	F29	B/3	: Crankshaft position sensor (POS)	B3	F68	GR/2	: Water valve
C4	F30	GR/2	: Fuel injector No. 1	E4	F69	GR/4	: Air fuel ratio (A/F) sensor 1 (bank 1)
D3	F31	GR/2	: Fuel injector No. 8	B4	F75	G/2	: Intake valve timing control solenoid valve (bank 2)
C2	F32	W/16	: To E2	D4	F76	GR/2	: EVAP canister purge volume control solenoid valve
C3	F33	W/16	: To E19	B4	F78	B/3	: Power steering pressure sensor
E3	F34	B/1	: Starter motor	B2	F79	B/81	: ECM
B2	F35	W/2	: To E52	Knock sensor sub-harness
D4	F38	B/6	: To F275	D2	F213	GR/2	: Engine coolant temperature sensor
D4	F41	GR/2	: Fuel injector No. 3	D3	F253	B/2	: Knock sensor (bank 1)
D4	F42	GR/2	: Fuel injector No. 5	C3	F254	B/2	: Knock sensor (bank 2)
E4	F43	GR/3	: Ignition coil No. 7 (with power transistor)	C5	F275	B/6	: To F38
