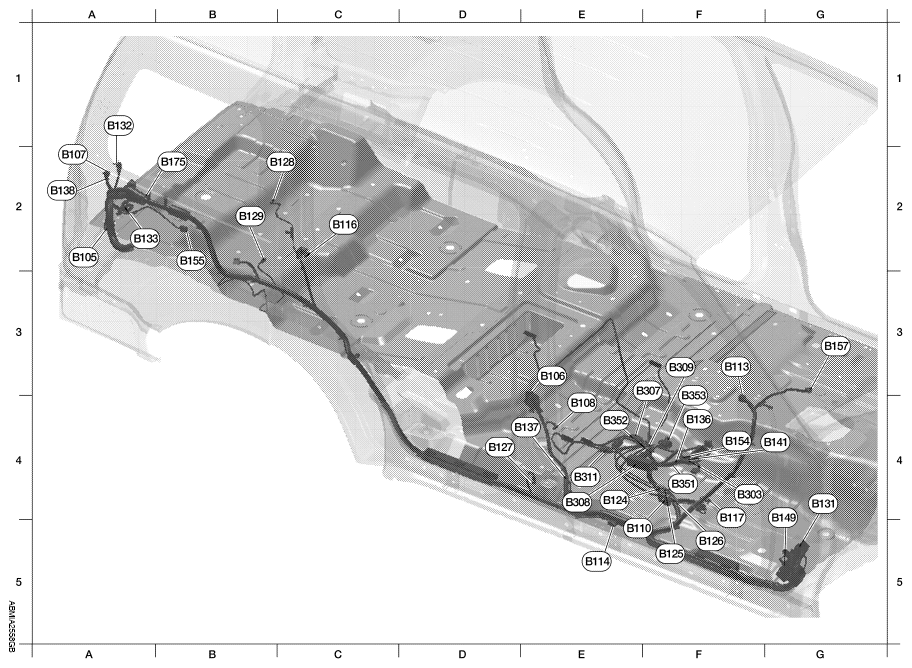

Body No. 2 Harness
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
| A2 | B105 | W/6 | : Rear combination lamp RH | F4 | B136 | W/8 | : To B351 |
| E3 | B106 | W/12 | : To D301 | E4 | B137 | W/3 | : Belt tension sensor |
| A2 | B107 | W/8 | : To D450 | A2 | B138 | B/3 | : Rear cargo power socket |
| E4 | B108 | W/3 | : Front door switch RH | G4 | B141 | W/3 | : Front seat heater RH (without front passenger power seat) |
| E5 | B110 | W/4 | : Seat belt buckle switch RH | G5 | B149 | SMJ | : To M36 |
| F3 | B113 | Y/22 | : Air bag diagnosis sensor unit | F4 | B154 | W/16 | : To B303 |
| E5 | B114 | Y/2 | : RH side air bag (satellite) sensor | B2 | B155 | B/6 | : Air mix door motor (rear) |
| C2 | B116 | W/3 | : Rear door switch RH | G3 | B157 | Y/2 | : To B78 |
| F5 | B117 | - | : Body ground | B2 | B175 | W/2 | : To B500 |
| E4 | B124 | W/32 | : Bluetooth control unit | Front seat RH harness | |||
| F5 | B125 | W/8 | : Bluetooth control unit | F4 | B303 | W/16 | : To B154 |
| F5 | B126 | Y/2 | : Front RH side air bag module | F3 | B307 | W/3 | : Front seat heater RH (with front passenger power seat) |
| D4 | B127 | Y/2 | : Front RH seat belt pre-tensioner | E4 | B308 | W/6 | : Power seat switch RH |
| B2 | B128 | Y/2 | : RH side rear curtain air bag module | F3 | B309 | GR/2 | : Sliding motor RH |
| B2 | B129 | GR/2 | : Luggage area antenna | E4 | B311 | W/2 | : Reclining motor RH |
| G4 | B131 | W/2 | : To M162 | F4 | B351 | W/8 | : To B136 |
| A1 | B132 | - | : Body ground | E4 | B352 | B/3 | : Occupant classification system sensor |
| A2 | B133 | W/4 | : Variable blower control (rear) | F4 | B353 | B/18 | : Occupant classification system control unit |
