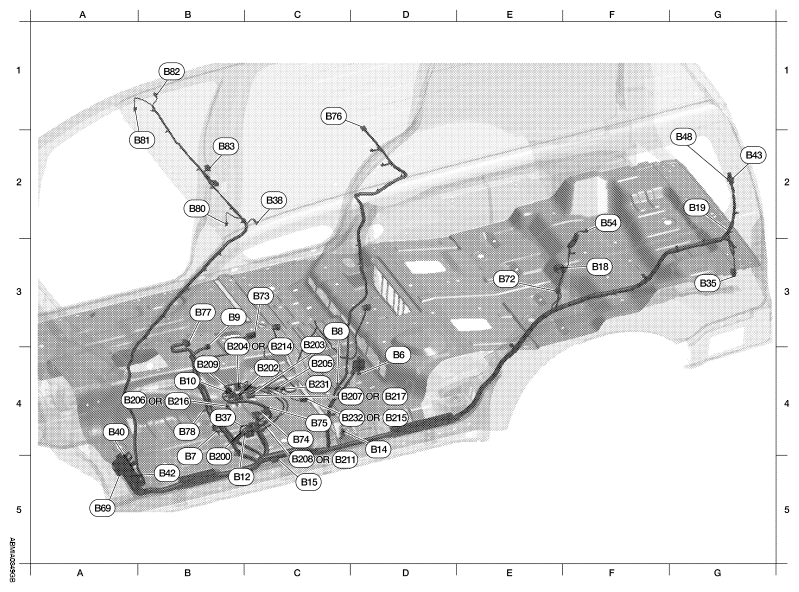

Body Harness
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
| D4 | B6 | W/12 | : To D201 | B3 | B77 | W/18 | : To M210 |
| B5 | B7 | - | : Body ground | B4 | B78 | Y/2 | : To B157 |
| C3 | B8 | W/3 | : Front door switch LH | B2 | B80 | W/2 | : Vanity lamp LH |
| B3 | B9 | Y/22 | : Air bag diagnosis sensor unit | B2 | B81 | W/2 | : Vanity lamp RH |
| B4 | B10 | Y/2 | : Front LH side air bag module | B1 | B82 | Y/2 | : RH side front curtain air bag module |
| B5 | B12 | W/4 | : Seat belt buckle switch LH | B2 | B83 | GR/10 | : Sunroof motor assembly |
| D4 | B14 | Y/2 | : Front LH seat belt pre-tensioner | Front seat LH harness | |||
| C5 | B15 | Y/2 | : LH side air bag (satellite) sensor | B5 | B200 | W/16 | : To B37 |
| F3 | B18 | W/3 | : Rear door switch LH | C4 | B202 | W/32 | : Driver seat control unit |
| G2 | B19 | - | : Body ground | C4 | B203 | W/16 | : Driver seat control unit |
| G3 | B35 | W/6 | : Rear combination lamp LH | C4 | B204 | GR/5 | : Sliding motor LH (with automatic drive positioner) |
| B4 | B37 | W/16 | : To B200 | C4 | B205 | W/4 | : To B231 |
| C2 | B38 | Y/2 | : LH side front curtain air bag module | B4 | B206 | GR/5 | : Lifting motor (front) (with automatic drive positioner) |
| A4 | B40 | W/8 | : To E34 | C4 | B207 | GR/5 | : Lifting motor (rear) (with automatic drive positioner) |
| B5 | B42 | W/2 | : To E36 | C5 | B208 | W/10 | : Power seat switch LH (with automatic drive positioner) |
| G2 | B43 | W/8 | : To D401 | B4 | B209 | W/3 | : Front seat heater LH |
| G2 | B48 | W/6 | : To D402 | C5 | B211 | W/10 | : Power seat switch LH (without automatic drive positioner) |
| F2 | B54 | Y/2 | : LH side rear curtain air bag module | C4 | B214 | GR/2 | : Sliding motor LH (without automatic drive positioner) |
| A5 | B69 | SMJ | : To M40 | D4 | B215 | W/2 | : Reclining motor LH (without automatic drive positioner) |
| E3 | B72 | W/8 | : Subwoofer | B4 | B216 | GR/2 | : Lifting motor (front) (without automatic drive positioner) |
| C3 | B73 | B/4 | : Yaw rate/side/decel G sensor | D4 | B217 | GR/2 | : Lifting motor (rear) (without automatic drive positioner) |
| C4 | B74 | GR/8 | : BOSE speaker amp. | C4 | B231 | W/4 | : To B205 |
| C4 | B75 | B/24 | : BOSE speaker amp. | D4 | B232 | B/4 | : Reclining motor LH (with automatic drive positioner) |
| C1 | B76 | W/16 | : Video monitor | - | - | - | - |
