Back Door Harness
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

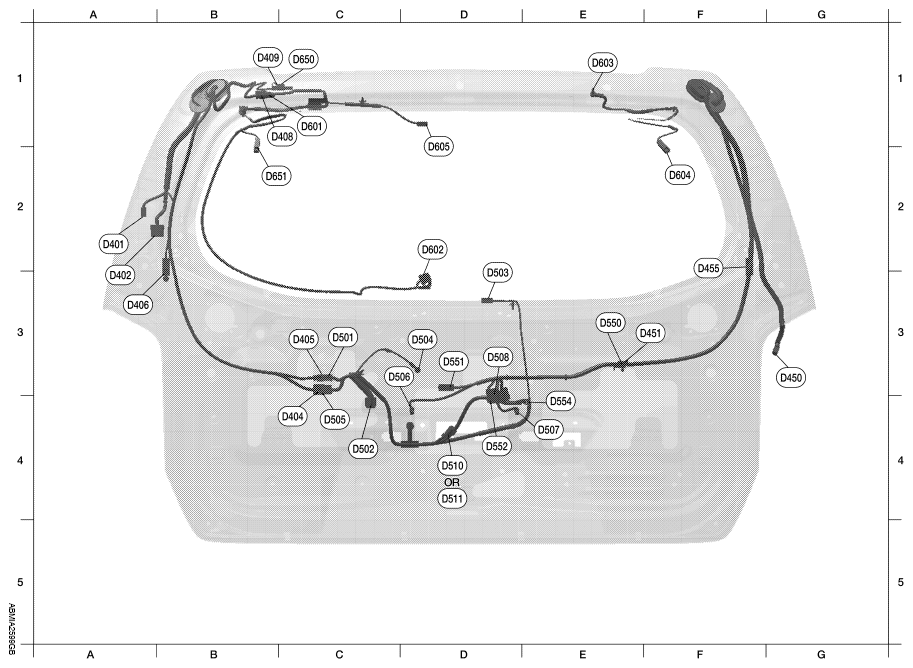

| Back door No. 2 harness | E4 | D507 | BR/2 | : License plate lamp RH | |||
| A2 | D401 | W/8 | : To B43 | D3 | D508 | W/4 | : Glass hatch lock actuator |
| A2 | D402 | W/6 | : To B48 | D4 | D510 | BR/2 | : Back door opener switch (without Intelligent Key system) |
| C4 | D404 | W/4 | : To D505 | D4 | D511 | BR/2 | : Back door opener switch (with Intelligent Key system) |
| C3 | D405 | W/8 | : To D501 | Back door RH harness | |||
| A3 | D406 | - | : Body ground | D3 | D550 | W/8 | : To D451 |
| B1 | D408 | W/4 | : To D601 | D3 | D551 | W/8 | : Rear view camera |
| C1 | D409 | W/1 | : To D650 | D4 | D552 | GR/2 | : Back door request switch |
| Back door No. 2 RH harness | E4 | D554 | - | : Body ground | |||
| F3 | D450 | W/8 | : To B107 | Rear window sub-harness | |||
| E3 | D451 | W/8 | : To D550 | C1 | D601 | W/4 | : To D408 |
| E3 | D455 | - | : Body ground | D2 | D602 | W/4 | : Rear wiper motor |
| Back door harness | E1 | D603 | - | : Body ground | |||
| C3 | D501 | W/8 | : To D405 | F2 | D604 | B/1 | : Rear window defogger |
| C4 | D502 | W/4 | : Back door latch | D1 | D605 | W/2 | : High-mounted stop lamp |
| D2 | D503 | B/1 | : Glass hatch ajar switch | Rear window defogger harness | |||
| D3 | D504 | - | : Body ground | B1 | D650 | W/1 | : To D409 |
| C4 | D505 | W/4 | : To D404 | B2 | D651 | B/1 | : Rear window defogger |
| D4 | D506 | BR/2 | : License plate lamp LH | - | - | - | - |
