Section 1105 (Roof): Wiring Diagram: Sunroof: Wiring Diagram

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

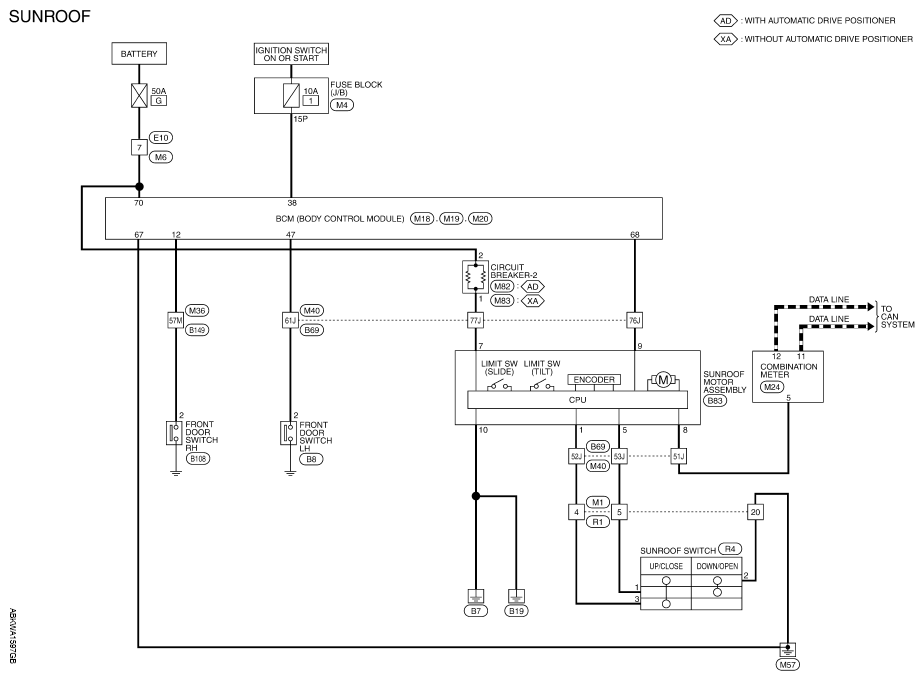

Fig 1: Sunroof Wiring Diagram
G08168538Courtesy of NISSAN NORTH AMERICA, INC.
