Rear Wiper Motor

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

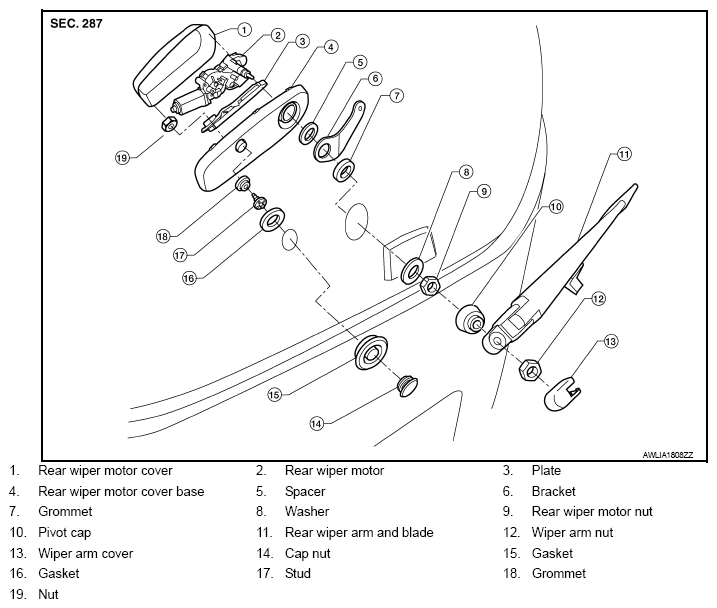

Fig 1: Exploded View Of Rear Wiper Motor Components

Courtesy of NISSAN NORTH AMERICA, INC.

Removal

Remove wiper arm. Refer to "REMOVAL AND INSTALLATION ".
Remove pivot cap.
Remove rear wiper motor nut.
Remove rear wiper motor cover.
Disconnect rear wiper motor connector.
Remove nut and remove rear wiper motor.

Fig 2: Identifying Rear Wiper Motor And Harness Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Remove rear wiper motor cover base.
Remove bracket.

Installation

CAUTION:

Do not drop the wiper motor or cause it to contact other parts.

Installation is in the reverse order of removal.
