CHECK FRONT WASHER SWITCH

Turn the ignition switch OFF.
Disconnect combination switch (wiper and washer switch).

Check continuity between the combination switch (wiper and washer switch) terminals.

Fig 1: Combination Switch Terminals Continuity Chart

Courtesy of NISSAN NORTH AMERICA, INC.

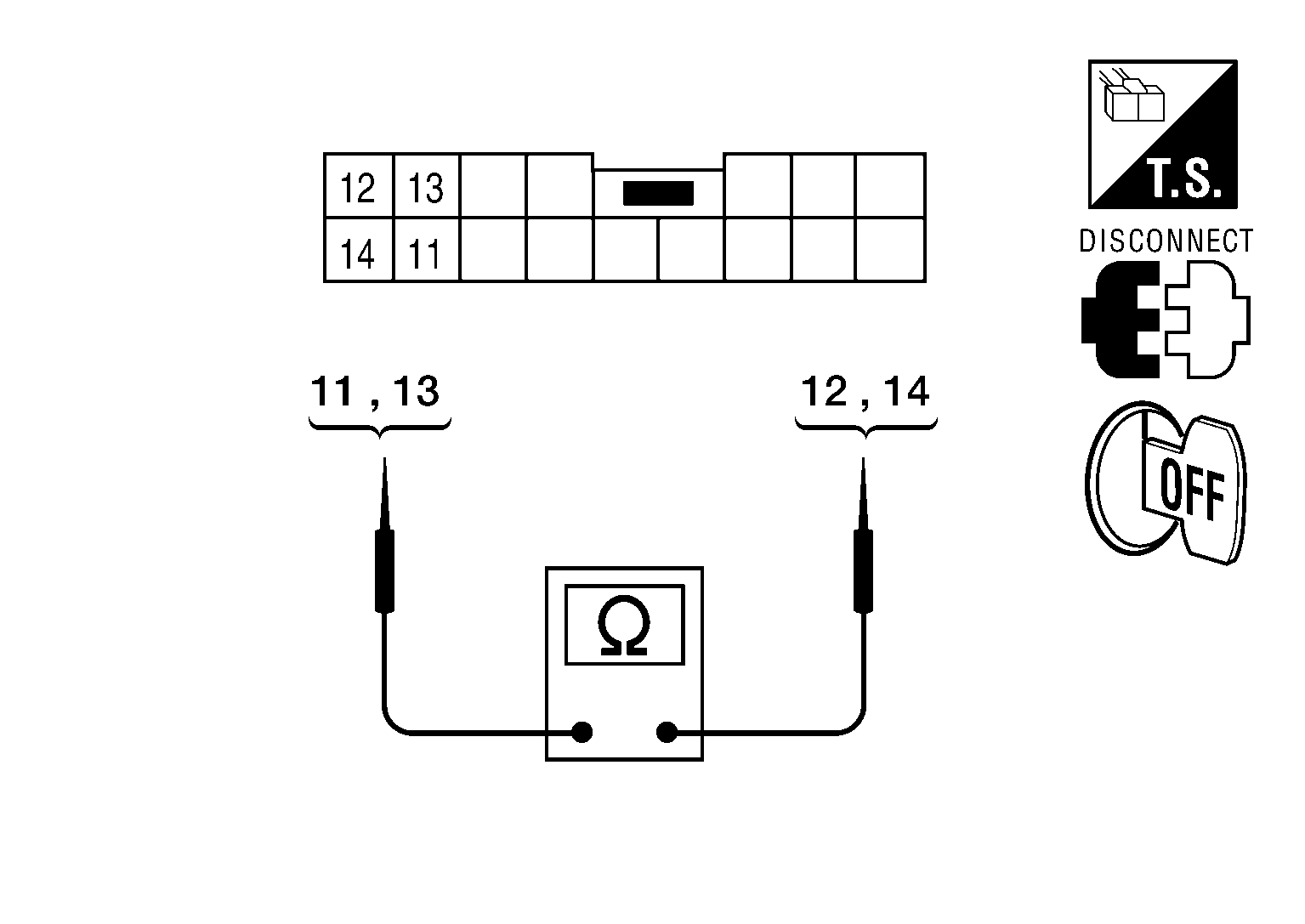

Fig 2: Checking Continuity Between Combination Switch (Wiper And Washer Switch) Terminals

Courtesy of NISSAN NORTH AMERICA, INC.

Combination switch (wiper and washer switch)		Condition	Continuity
Terminal		Condition	Continuity
11	12	Front washer switch ON	Yes
13	14	Front washer switch ON	Yes

Does continuity exist?

YES: GO TO 2

NO: Replace combination switch (wiper and washer switch). Refer to "REMOVAL AND INSTALLATION ".

CHECK REAR WASHER SWITCH

Check continuity between the combination switch (wiper and washer switch) terminals.

Fig 3: Combination Switch Terminals Continuity Chart

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Checking Continuity Between Combination Switch (Wiper And Washer Switch) Terminals

Courtesy of NISSAN NORTH AMERICA, INC.

Combination switch (wiper and washer switch)		Condition	Continuity
Terminal		Condition	Continuity
11	14	Rear washer switch ON	Yes
12	13	Rear washer switch ON	Yes

Does continuity exist?

YES: Wiper and washer switch is normal.

NO: Replace combination switch (wiper and washer switch). Refer to "REMOVAL AND INSTALLATION ".
