Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the rear door speaker screws (A).
  3. Disconnect the rear door speaker connector (B) and remove rear door speaker (1).

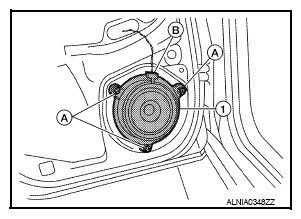

Fig 1: Identifying Rear Door Speaker, Screws And Connector
G08169529Courtesy of NISSAN NORTH AMERICA, INC.
