Heater & Cooling Unit Assembly: Component

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

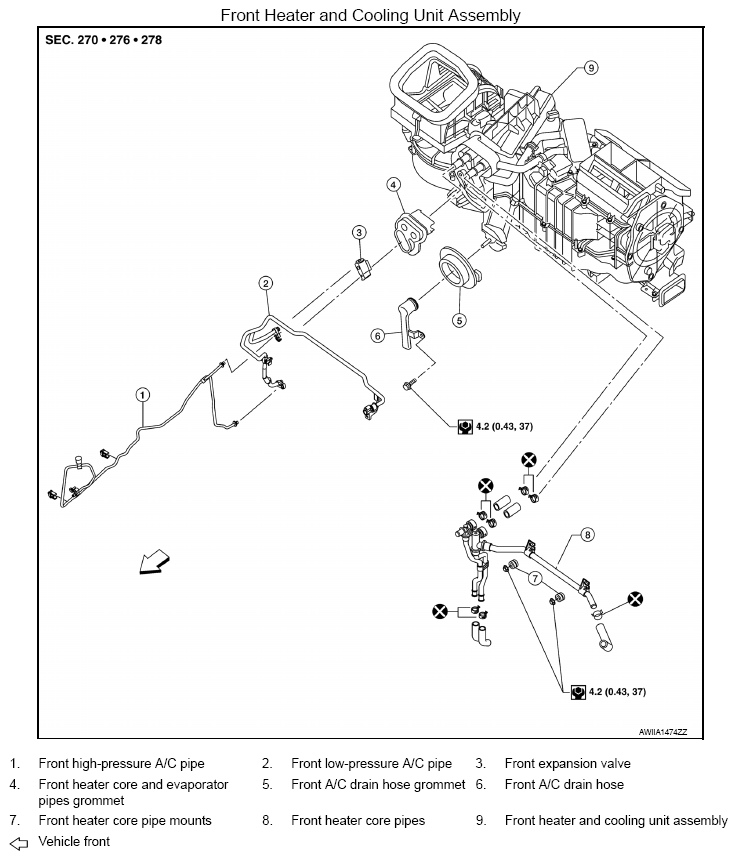

Fig 1: Exploded View Of Front Heater And Cooling Unit Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

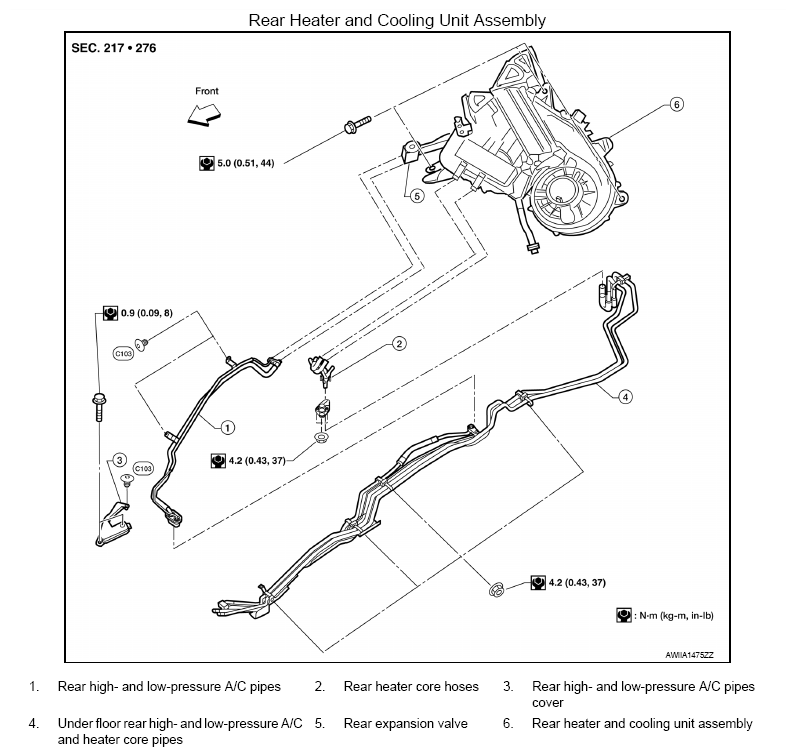

Fig 2: Exploded View Of Rear Heater And Cooling Unit Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
