Wiring Diagram - Without Automatic Drive Positioner

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

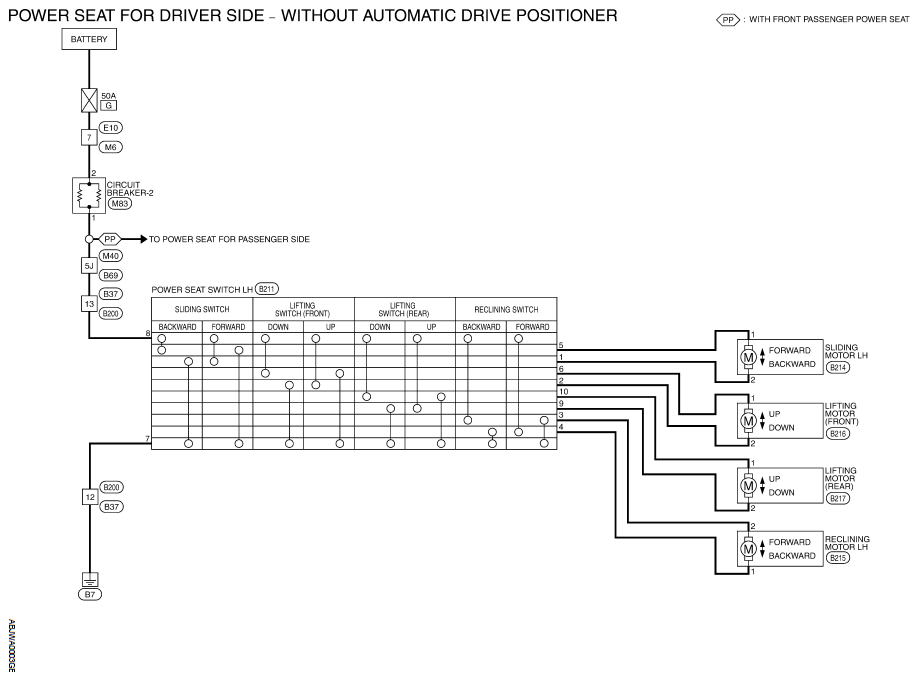

Fig 1: Power Seat For Driver Side Wiring Diagram (Without Automatic Drive Positioner)
G05946246Courtesy of NISSAN NORTH AMERICA, INC.
