Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front roof console finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the satellite antenna connector.
  3. Remove the satellite antenna nut.
  4. Remove the satellite antenna.

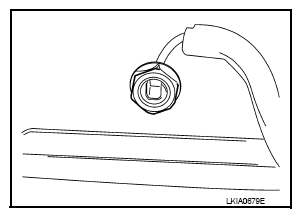

Fig 1: Identifying Satellite Radio Antenna Nut
G08170021Courtesy of NISSAN NORTH AMERICA, INC.
