Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the front door speaker screws (A).
  3. Pull out the front door speaker (1), and disconnect the front door speaker connector and remove the front door speaker (1).

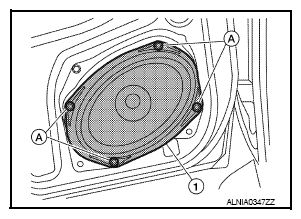

Fig 1: Identifying Front Door Speaker And Screws
G08170007Courtesy of NISSAN NORTH AMERICA, INC.
