Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not remove the LH front seat from the vehicle.
  1. Remove LH front seat bolts, disconnect the LH front seat electrical harness connector. Refer to "REMOVAL AND INSTALLATION ".
  2. Tilt the LH front seat back to access the BOSE speaker amp. (1), then remove the BOSE speaker amp. screws (B).
    • : Vehicle front
  3. Disconnect the Bose speaker amp. connectors (A) and remove Bose speaker amp. (1) from the bracket (2).
  4. Then remove the BOSE speaker amp. bracket screws (C) and remove bracket (2).

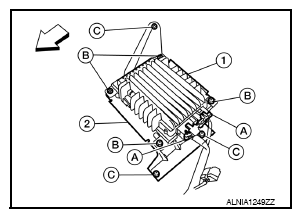

Fig 1: Identifying Bracket, Bose Speaker Amp. With Connectors And Bracket Screws
G08170010Courtesy of NISSAN NORTH AMERICA, INC.
