Diagnosis Procedure

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Regarding Wiring Diagram information, refer to "WIRING DIAGRAM - WITH NAVIGATION SYSTEM ".

GPS ANTENNA CHECK
Inspect GPS antenna and antenna feeder for damage or poor connection.

Is the GPS antenna and feeder clean and undamaged?

YES: GO TO 2

NO: Repair or replace malfunctioning parts.
CHECK AV CONTROL UNIT VOLTAGE
1. Turn ignition switch ON.
2. Check voltage between AV control unit connector M72 terminal 109 and ground.
109 - Ground: Approx. 5V

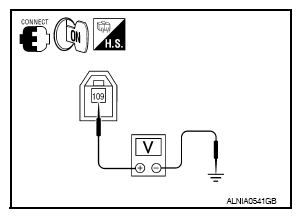

Fig 1: Checking Voltage Between AV Control Unit Connector M72 Terminal 109 And Ground
Courtesy of NISSAN NORTH AMERICA, INC.

Is the voltage reading as specified?

YES: Replace GPS antenna. Refer to "REMOVAL AND INSTALLATION ".

NO: Replace AV control unit. Refer to "REMOVAL AND INSTALLATION ".
