Removal and Installation: Installation

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION:
  • When installing the breather hose make sure the painted marking on the metal end of breather hose is to the front of the vehicle and there are no pinched or restricted areas on the breather hose caused by folding or bending when installing it.
  • When installing the breather hose insert the plastic end of the breather hose into the hole in the suspension member.

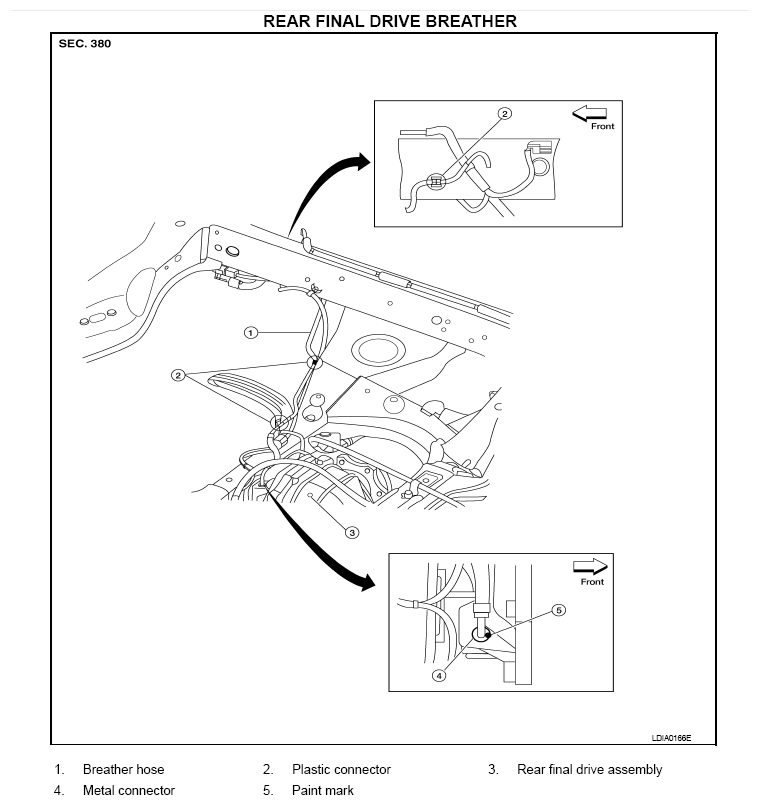

    Fig 1: Identifying Rear Final Drive Assembly, Breather Hose, Plastic And Metal Connectors
    G08166766Courtesy of NISSAN NORTH AMERICA, INC.
  • Check the rear final drive assembly differential gear oil after installation and refill as necessary. Refer to "CHANGING DIFFERENTIAL GEAR OIL ".
