Removal and Installation: Installation

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new rear oil seal until it is flush with the end face of the rear case using Tool.

    Tool number: KV38100500 (-)

    Fig 1: Installing Rear Oil Seal Using Tool
    G04901593Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Do not reuse oil seal.
    • Apply petroleum jelly to oil seal.
  2. Install the oil cover until it reaches the end face of the new dust cover.
    CAUTION:
    • Do not reuse dust cover
    • Position the oil cover with the notch at bottom position.
  3. Apply petroleum jelly to the circumference of the new dust cover. Position the new dust cover as shown.
    CAUTION:
    • Do not reuse dust cover  .
    • Position the protrusions at the position shown  .
    • 1: Dust cover
    • A: Protrusions
    • 2: Rear case assembly

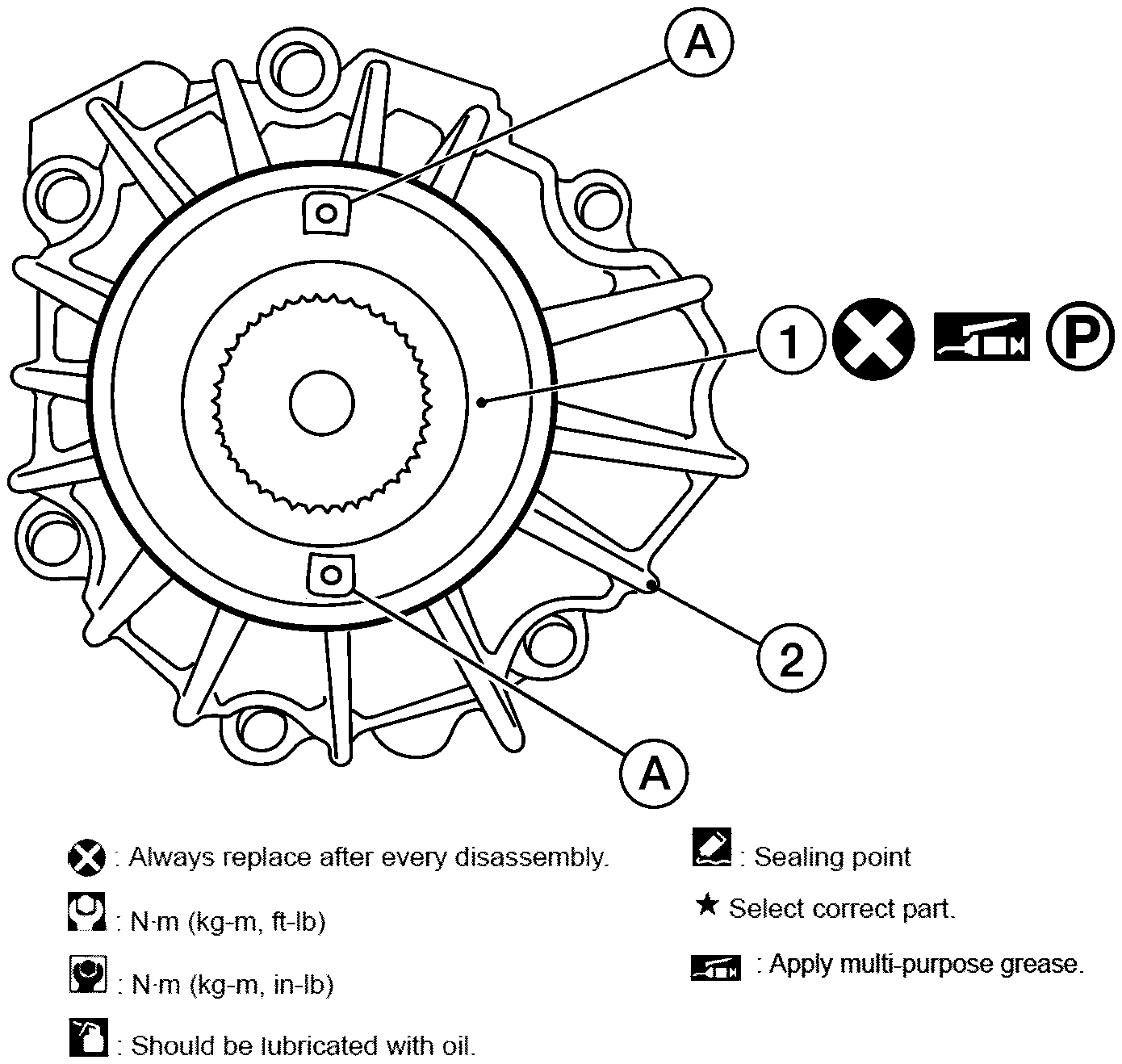

    Fig 2: Identifying Protrusions, Rear Case Assembly And Dust Cover
    G05928373Courtesy of NISSAN NORTH AMERICA, INC.
  4. Install the new dust cover to the rear case using Tool.

    Tool number: KV40105310 (-)

    Fig 3: Installing Dust Cover To Rear Case Using Tool
    G04901595Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Apply petroleum jelly to dust cover.
  5. Install the rear propeller shaft. Refer to "UNIT REMOVAL AND INSTALLATION ".
  6. Check for fluid leaks and fluid level. Refer to "INSPECTION ".
