Wiring Diagram - Automatic

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

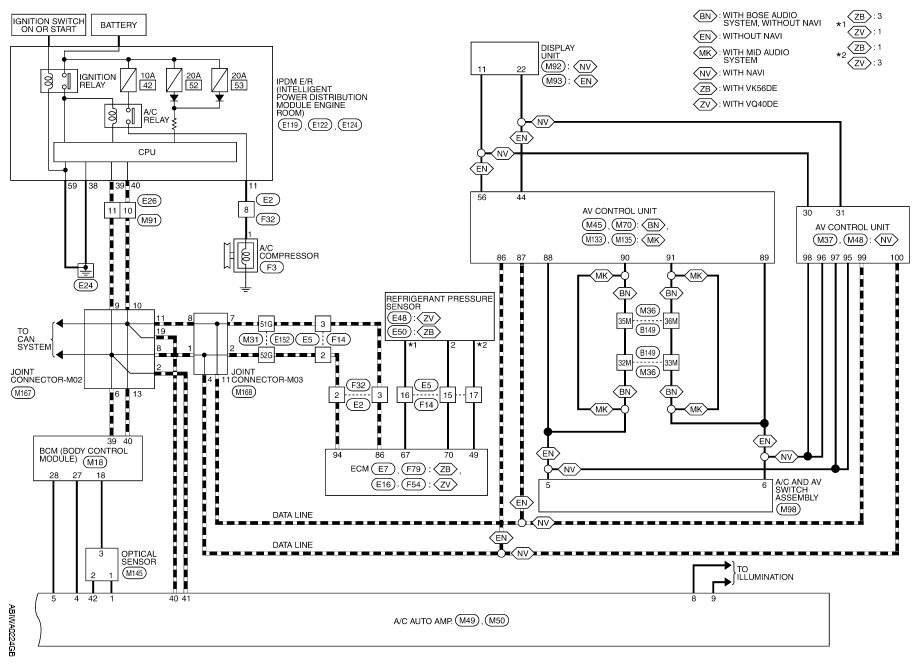

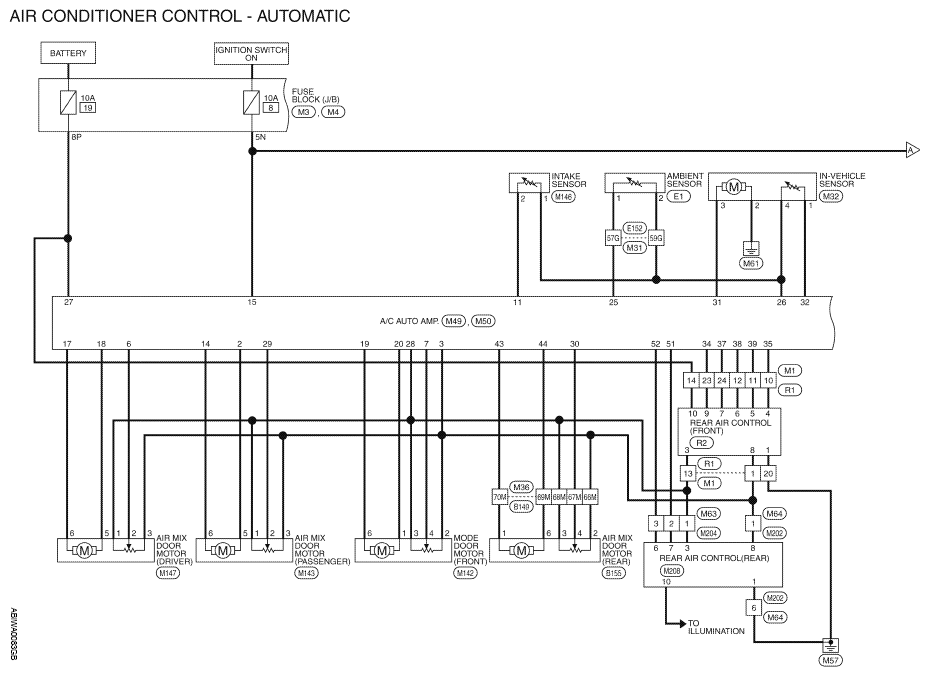

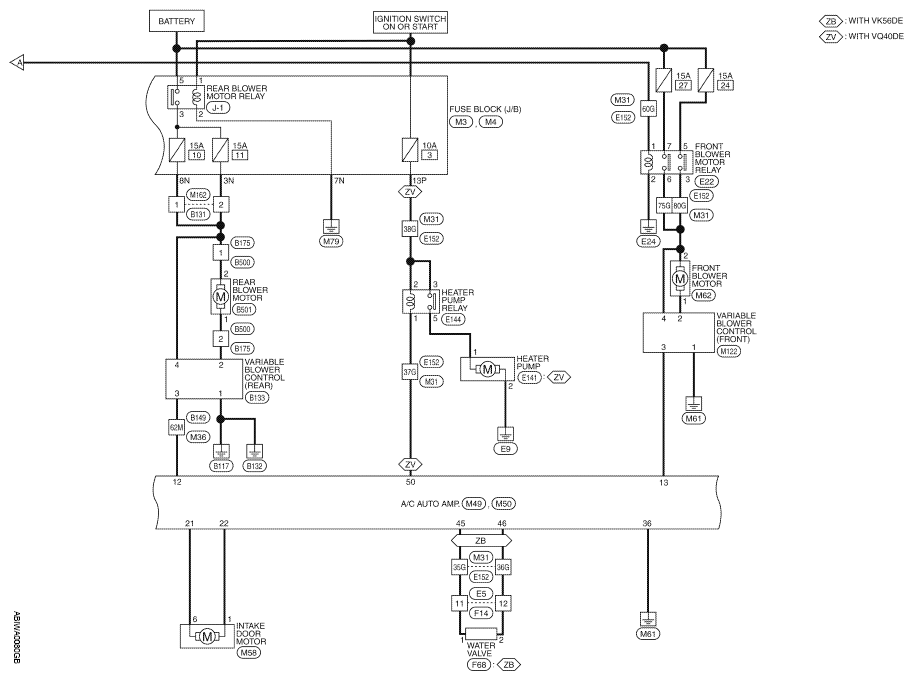

Fig 1: Air Conditioner Control - Wiring Diagram - Automatic (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Air Conditioner Control - Wiring Diagram - Automatic (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Air Conditioner Control - Wiring Diagram - Automatic (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

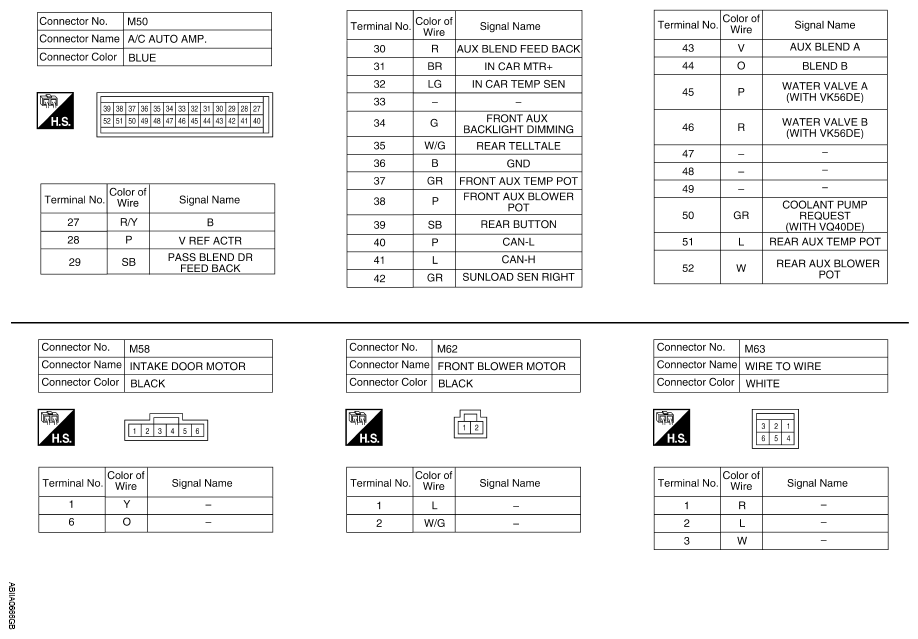

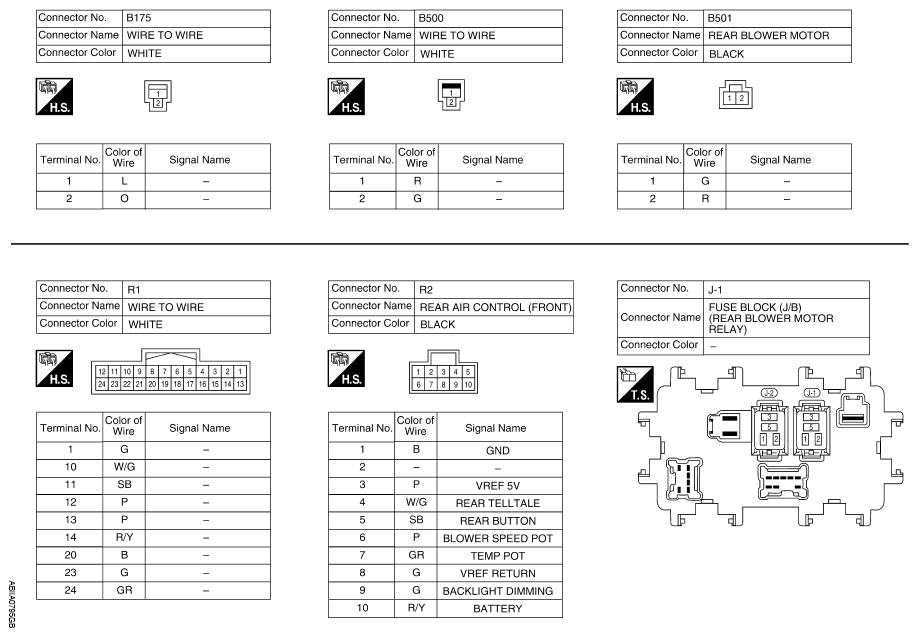

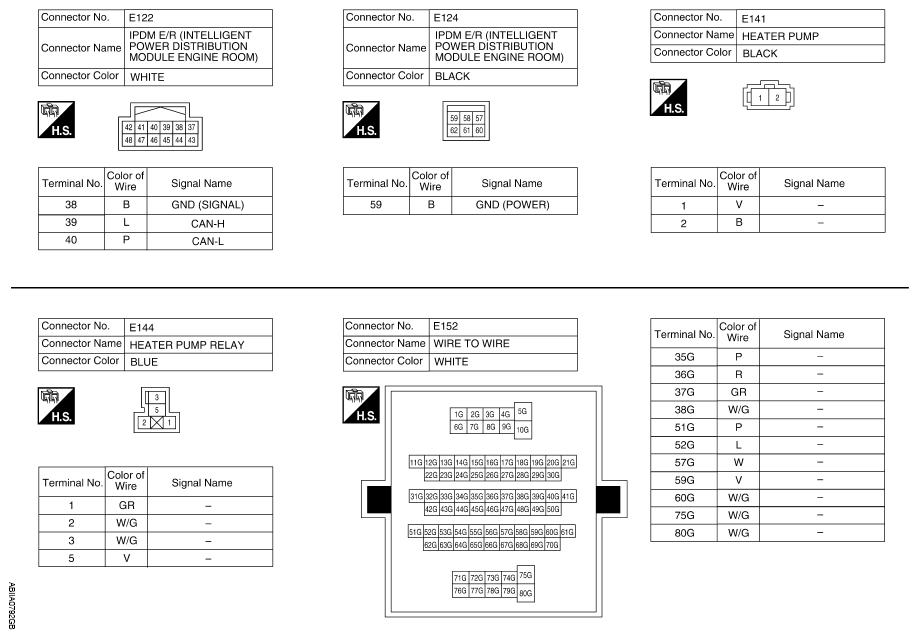

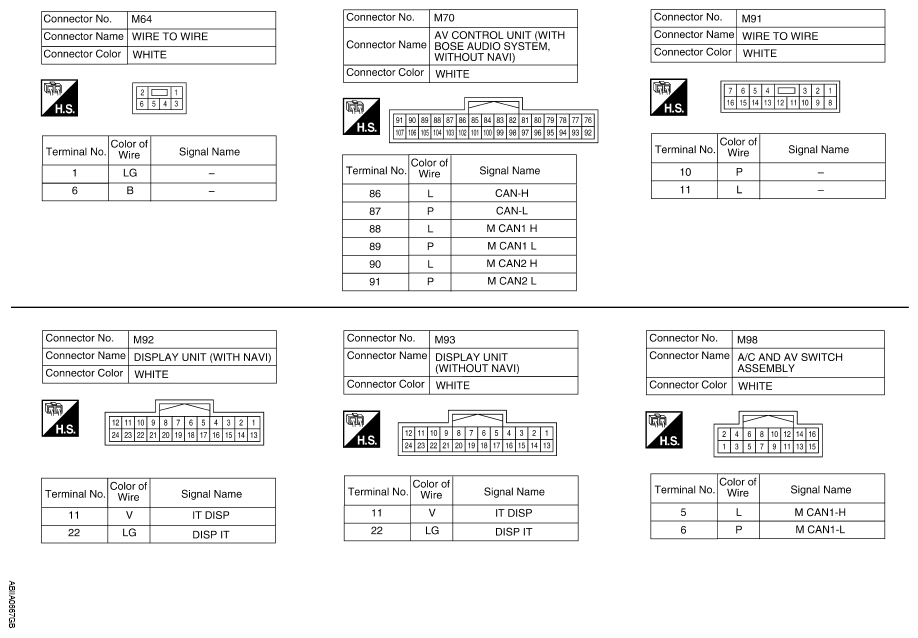

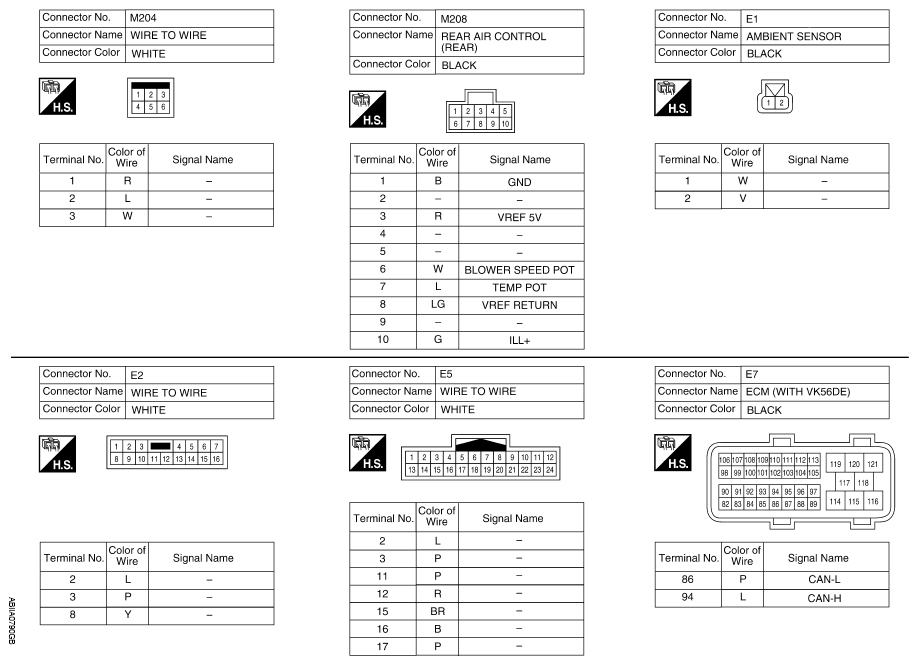

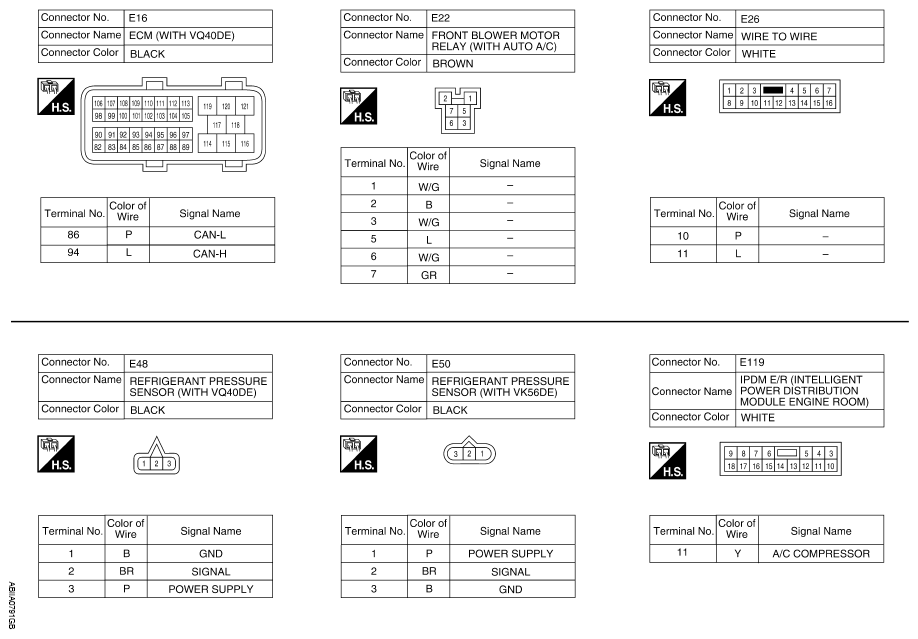

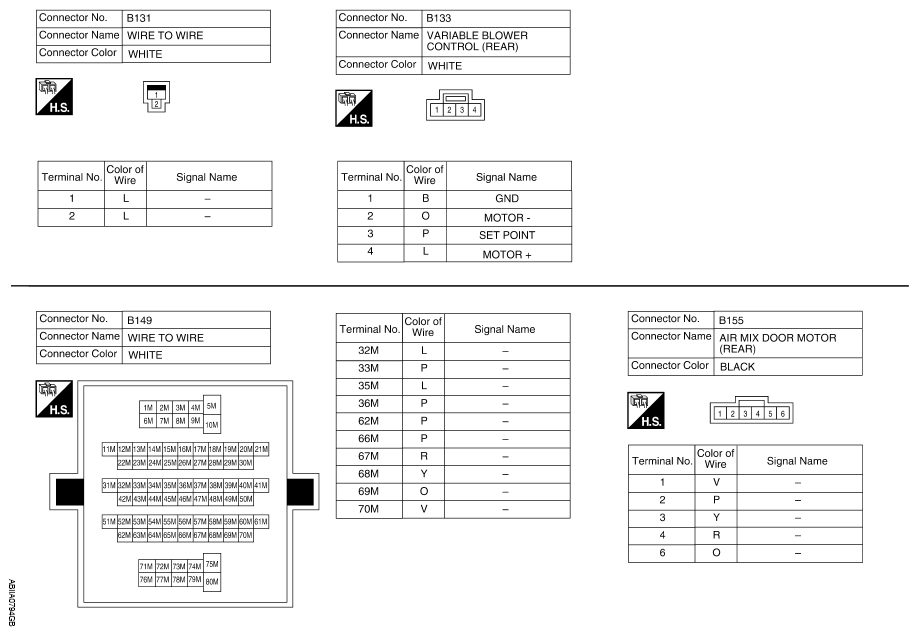

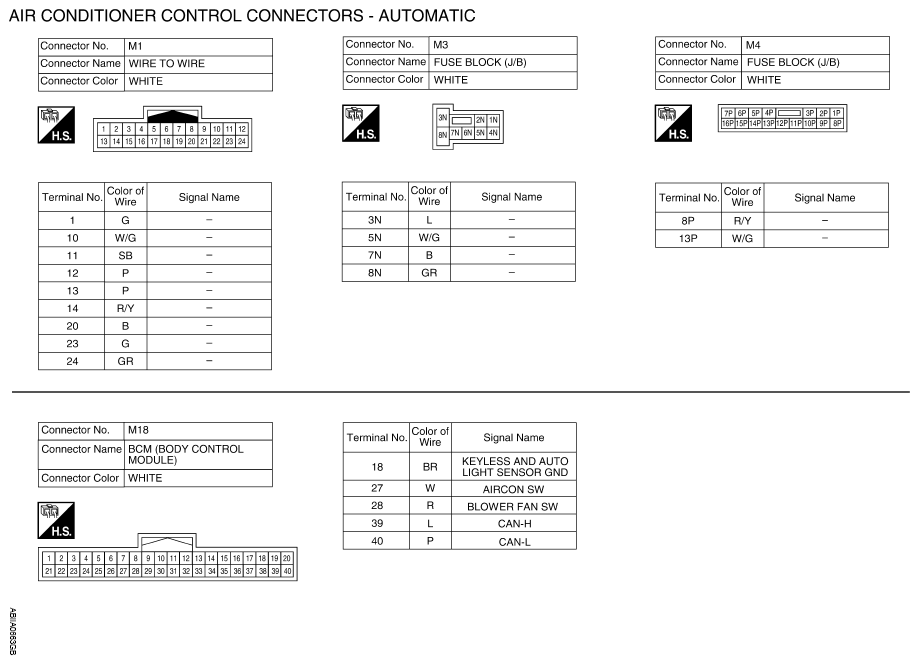

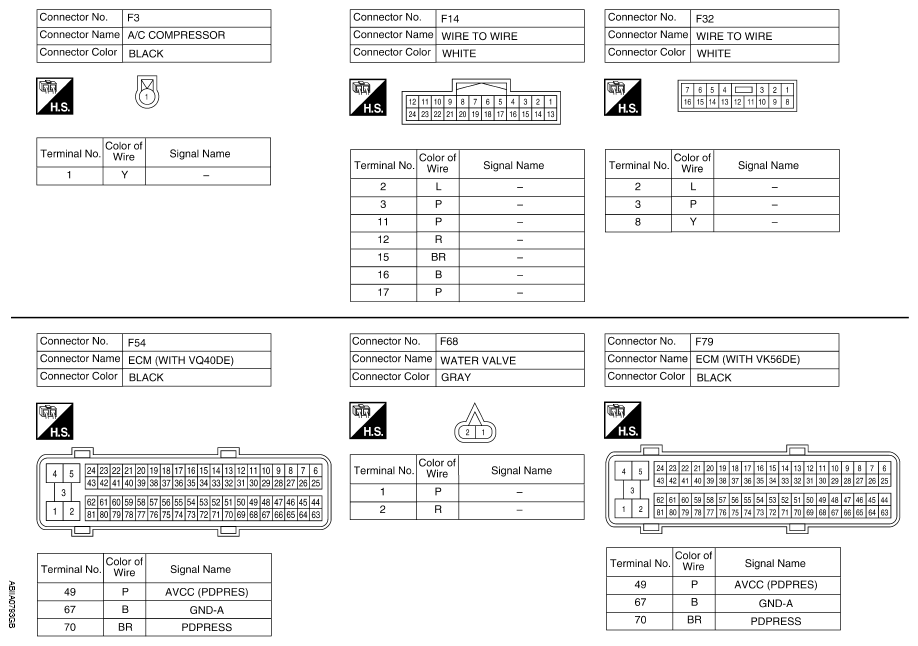

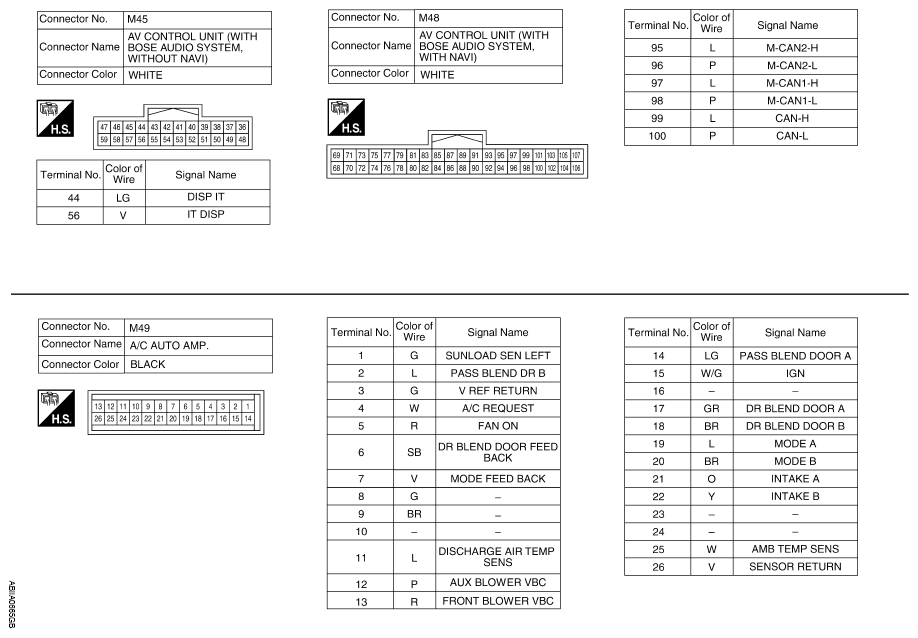

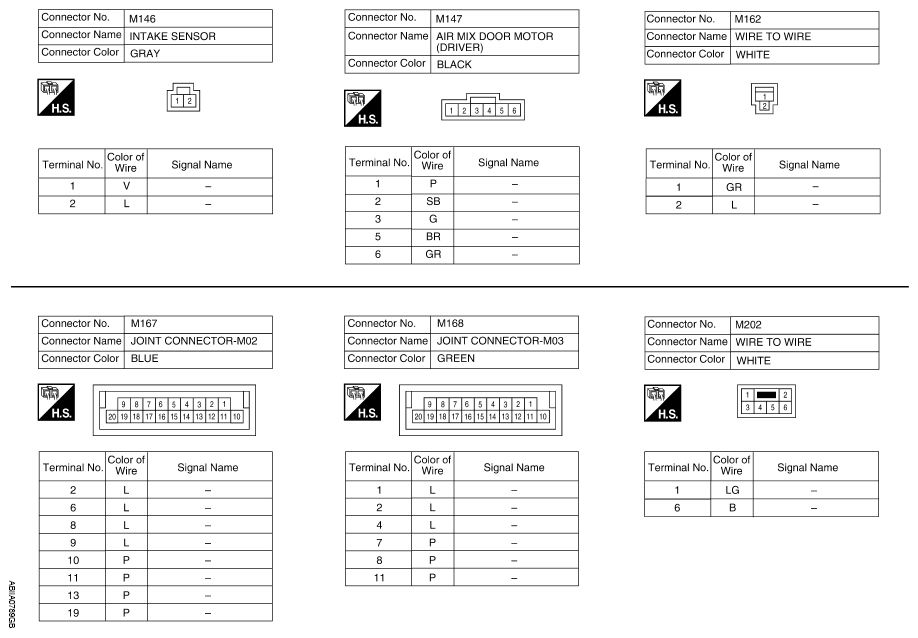

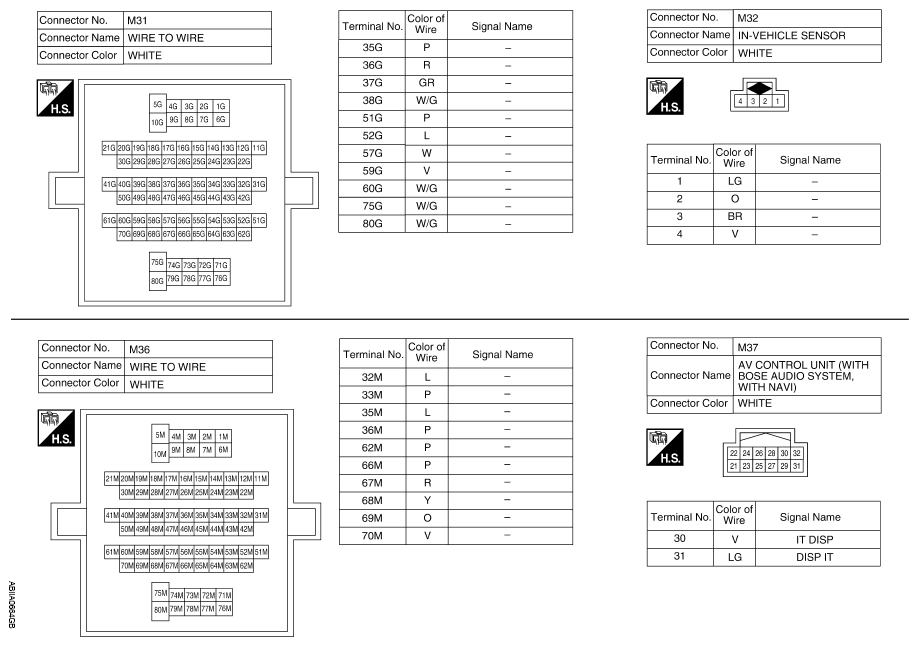

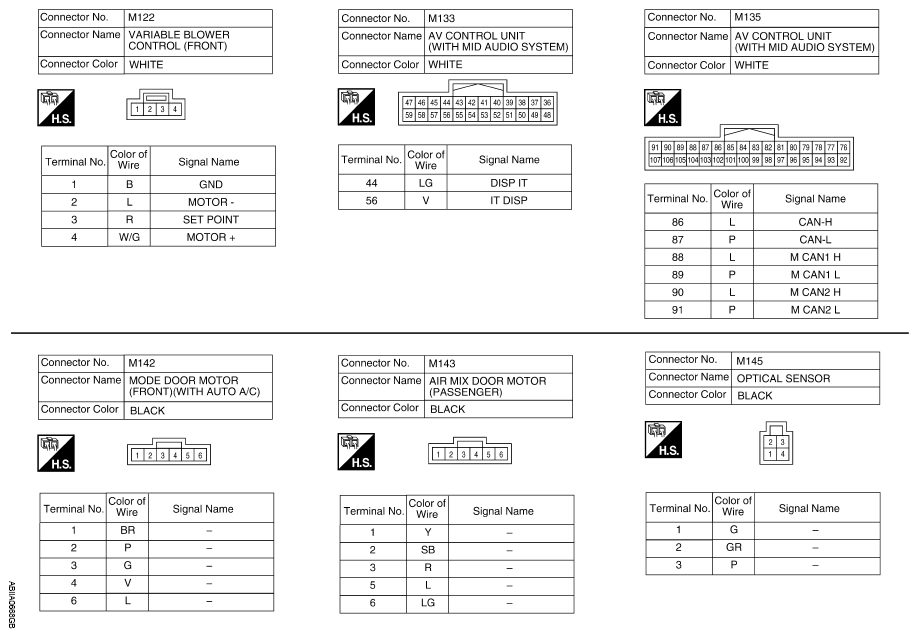

Fig 4: Identifying Air Conditioner Control Connectors - Automatic (1 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Air Conditioner Control Connectors - Automatic (2 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Air Conditioner Control Connectors - Automatic (3 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Air Conditioner Control Connectors - Automatic (4 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Identifying Air Conditioner Control Connectors - Automatic (5 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Air Conditioner Control Connectors - Automatic (6 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Air Conditioner Control Connectors - Automatic (7 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Air Conditioner Control Connectors - Automatic (8 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Air Conditioner Control Connectors - Automatic (9 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Air Conditioner Control Connectors - Automatic (10 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Air Conditioner Control Connectors - Automatic (11 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Air Conditioner Control Connectors - Automatic (12 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying Air Conditioner Control Connectors - Automatic (13 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.
